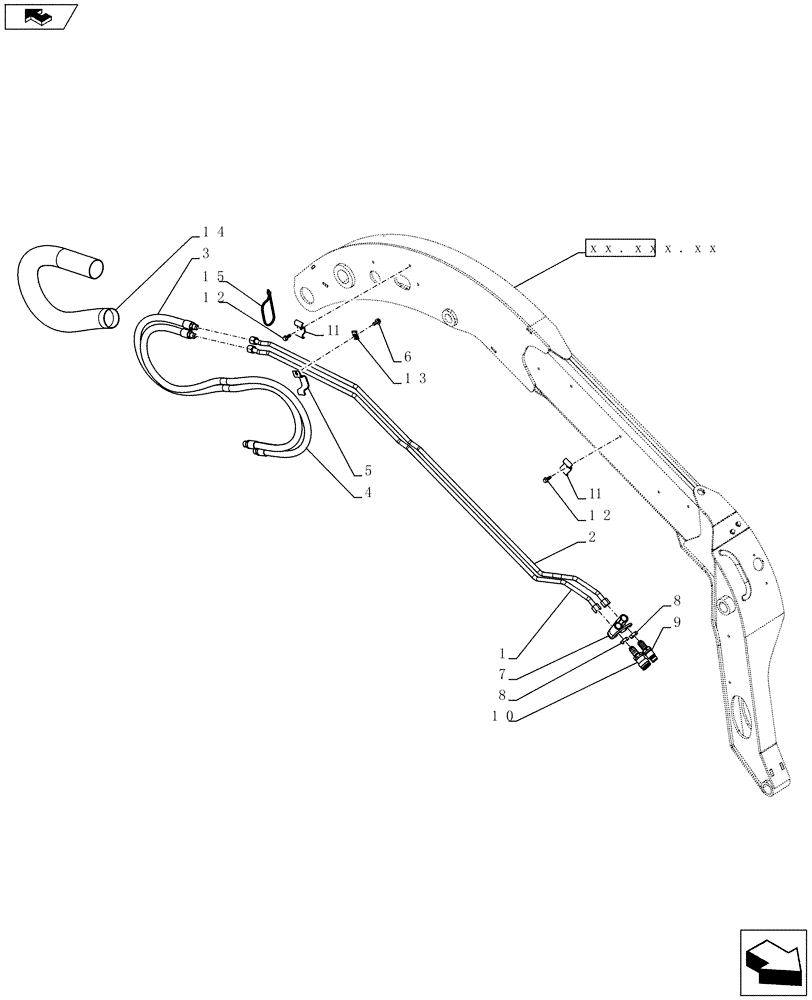

Запчасти Case TV380 (35.734.AH[02]) - AUX HYD, STD, ARM PLUMBING (SV250,SV300,TV380) (35) - HYDRAULIC SYSTEMS

1

84304133

RIGID TUBE

Assembly, Std Aux

1шт.

2

84304135

RIGID TUBE

Assembly, Std Aux

1шт.

3

84304100

FLEXIBLE HOSE,15.88mm ID x 1935mm L, SAE 100R17

Assembly, Aux

1шт.

4

84304099

FLEXIBLE HOSE,15.88mm ID x 1905mm L, SAE 100R17

Assembly, Aux

1шт.

5

84285091

HOSE CLAMP

-10 Hose Double

1шт.

6

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

7

84252821

BRACKET

Aux Coupler

1шт.

8

595460

BHD LOCK NUT,7/8" - 14

2шт.

9

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

10

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

11

84252828

CLAMP,65.2mm L

Butterfly Tube

2шт.

12

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

13

86625071

SPRING NUT,M10 x 1.5

1шт.

14

84362110

SLEEVE,73mm ID x 78mm OD x 1070mm L

Hose

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Nylon Tie 15.5in

1шт.
