Запчасти Case TV380 (35.701.CB[04]) - HYDRAULIC LIFT CYLINDER, LH, ASN NCM450591 NA, NCM441534 EU (TV380) (35) - HYDRAULIC SYSTEMS

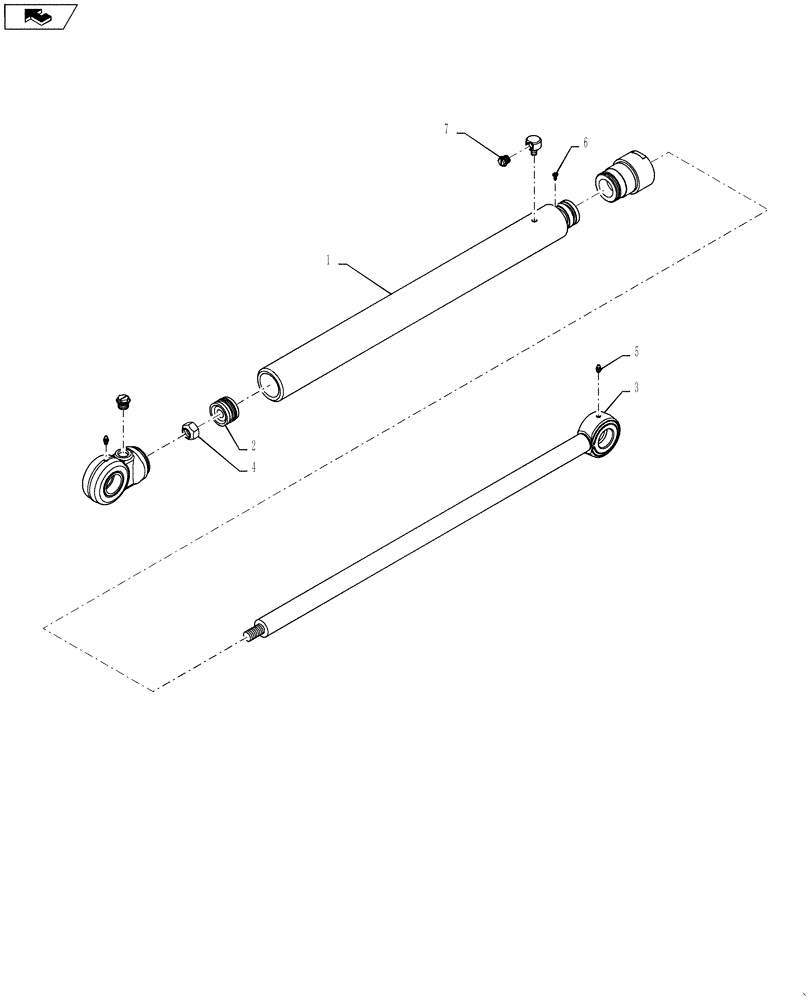

Схема запчастей Case TV380 - (35.701.CB[04]) - HYDRAULIC LIFT CYLINDER, LH, ASN NCM450591 NA, NCM441534 EU (TV380) (35) - HYDRAULIC SYSTEMS
2
4
1
5
7
6
home
3

Артикул

Название

Примечание

Количество

84558165

CYLINDER,Double Acting, 50.8mm Rod, 886.5mm Stroke

Hydraulic, LH Lift, 69.9 X 50.8, Incl. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, W LH 69.9 Bore

1шт.

2

NSS

NOT SOLD SEPARAT

Piston-Gland, 69.9 X 50.8

1шт.

3

84558175

PISTON ROD

Rod W, 50.8 DIA

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4-16

2шт.

8

84530079

SERVICE KIT

(Not Shown) Cylinder Repair Kit

1шт.

Выбрано товаров: 9
