Запчасти Case TV380 (35.701.CB[03]) - HYDRAULIC LIFT CYLINDER, LH, BSN NCM450591 NA, NCM441534 EU (TV380) (35) - HYDRAULIC SYSTEMS

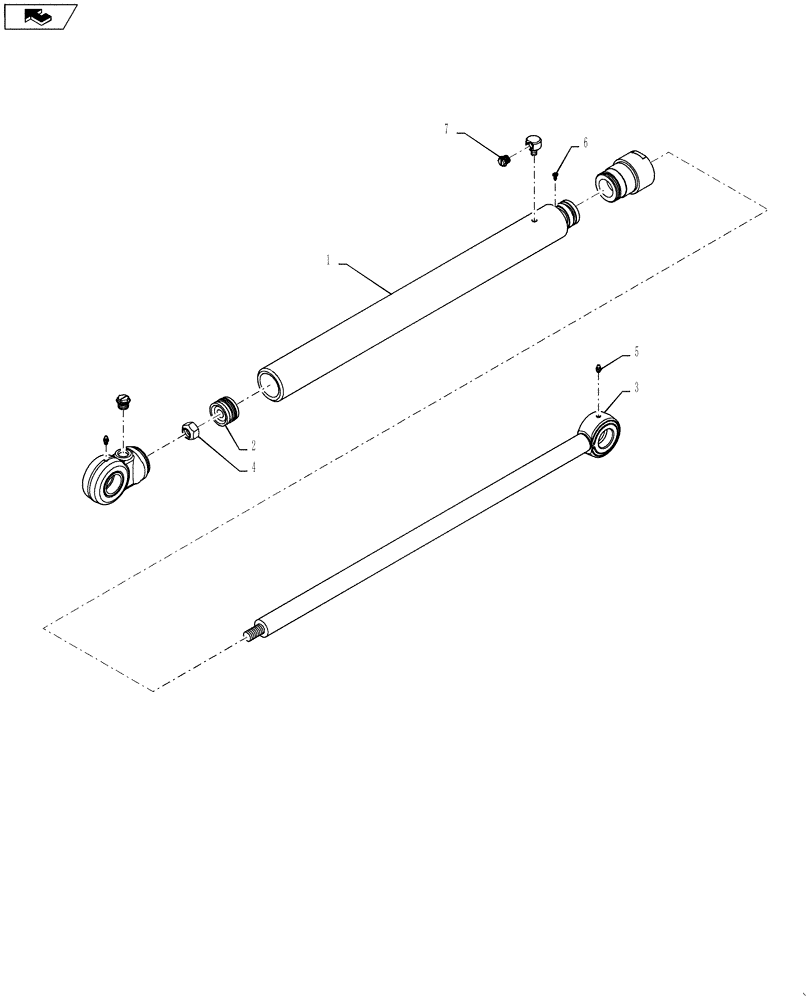

Схема запчастей Case TV380 - (35.701.CB[03]) - HYDRAULIC LIFT CYLINDER, LH, BSN NCM450591 NA, NCM441534 EU (TV380) (35) - HYDRAULIC SYSTEMS
7
1
5
home
4
6
2
3

Артикул

Название

Примечание

Количество

84358576

CYLINDER

Hydraulic, LH Lift, 63.5 X 44.4, Incl. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, W LH 63.5 Bore, 63.5 X 44.4

1шт.

2

NSS

NOT SOLD SEPARAT

Piston-Gland, 63.5 X 44.4

1шт.

3

84558175

PISTON ROD

Rod W, 44.4 DIA

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4-16

2шт.

8

84480921

KIT

(Not Shown) Cylinder Repair Kit

1шт.

Выбрано товаров: 9
