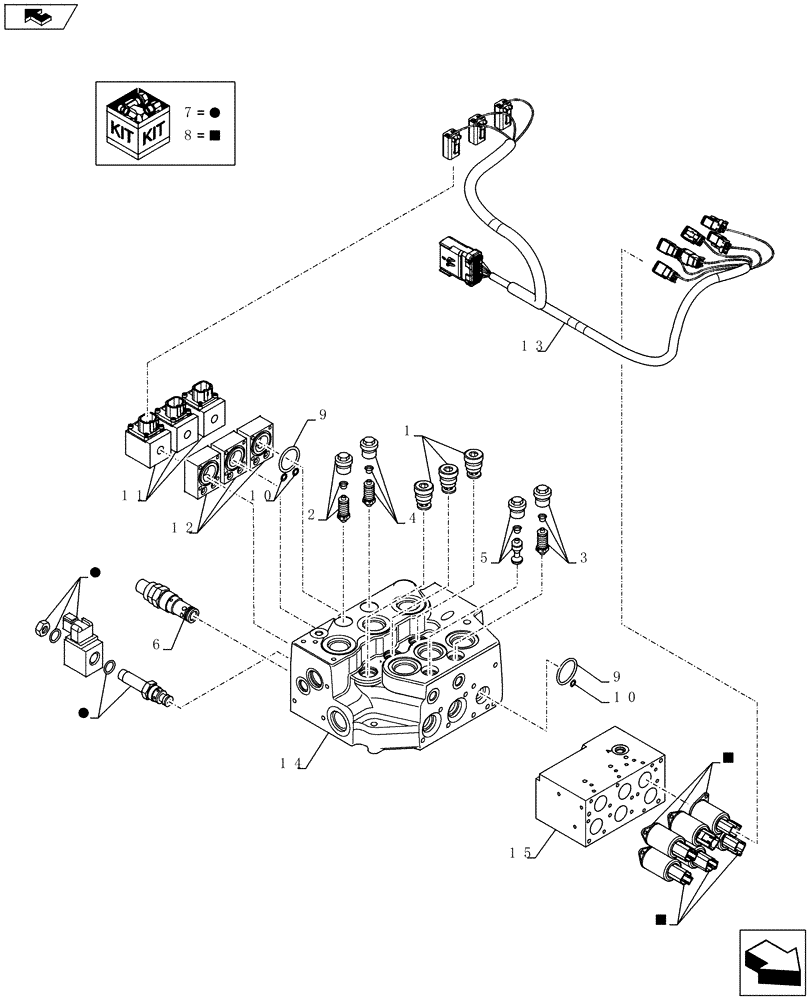

Запчасти Case TV380 (35.357.AG[01]) - CONTROL VALVE, EH W/ HARNESS (ALL CASE) (35) - HYDRAULIC SYSTEMS

1

84386281

CHECK VALVE

Load

3шт.

2

84386282

VALVE PRESSURE RELIE

225 BAR Port Relief

1шт.

3

84386283

VALVE PRESSURE RELIE

230 BAR Port Relief

1шт.

4

84386284

VALVE PRESSURE RELIE

240 BAR Port Relief

1шт.

5

84386285

HYDRAULIC VALVE

Anti-Cavitation

1шт.

6

84386287

VALVE PRESSURE RELIE

207 BAR Port Relief

1шт.

7

84386288

HYDRAULIC VALVE

PLV Cartridge

1шт.

8

84386289

VALVE, PRESSURE CONT

Reducing

6шт.

9

84386293

O-RING

EH Spool Cap

6шт.

10

84386294

O-RING

EH Passage

9шт.

11

84386295

SENSOR

Spool Position

3шт.

12

84386296

CAP

Spool Position Sensor End

3шт.

13

84484220

WIRE HARNESS

EH Control Valve

1шт.

14

84250154

CONTROL VALVE

Directional Control, Electro-Hydraulic, Includes Ref. 1-12, 15

1шт.

14

84250154R

REMAN-HYD VALVE

1шт.

14

84250154C

CORE-VALVE HYD

Return Number

1шт.

15

NSS

NOT SOLD SEPARAT

Command Body, Part Of Ref. 14

1шт.

16

84598798

VALVE

80 BAR Port Relief

1шт.

17

84598799

VALVE

100 BAR Port Relief

1шт.
