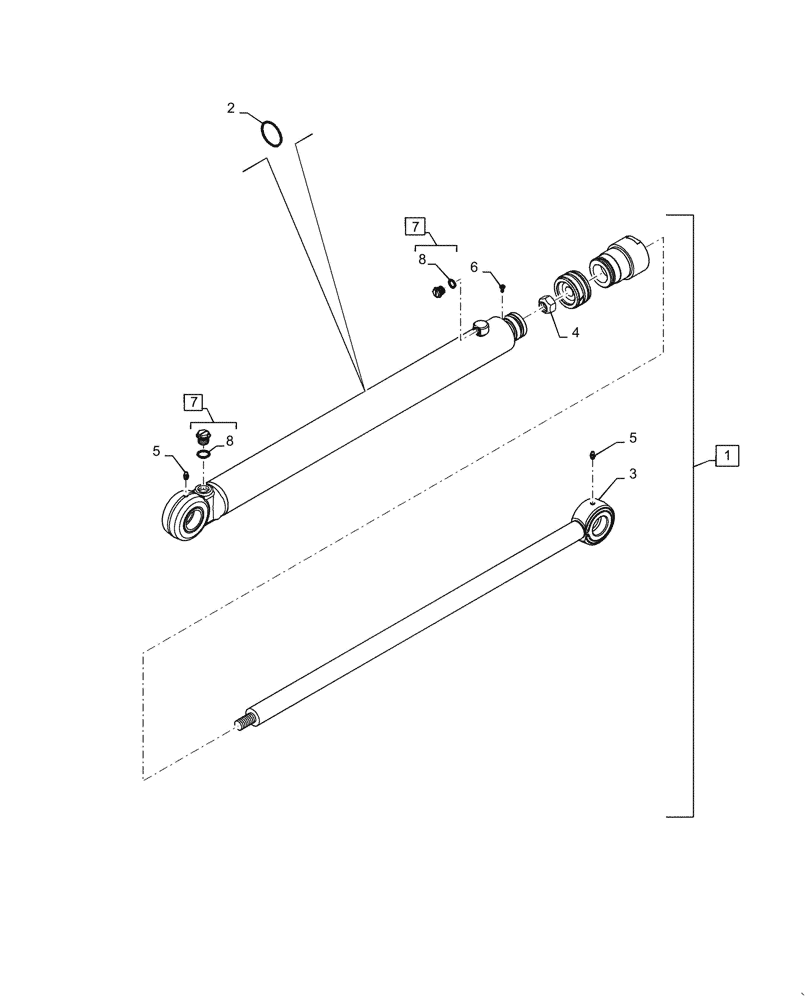

Запчасти Case TR340 (35.723.020) - BOOM HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

84575712

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 817.9mm Stroke

Lift, Incl 3 - 7, Years: -20-DEC-12

1шт.

1

47364858

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 817.9mm Stroke

Lift, Incl 3 - 7, Start Year: 21-DEC-12

1шт.

1

47364858C

LIFT CYLINDER

Core, Return Number

1шт.

1

47364858R

LIFT CYLINDER

Reman

1шт.

2

84576195

SERVICE KIT

Services 1, Years: -20-DEC-12

1шт.

2

47364907

SERVICE KIT

Services 1, Start Year: 21-DEC-12

1шт.

3

84575708

ROD

Piston

1шт.

4

514101

LOCK NUT,Hex, 1" - 14

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

Incl 8

2шт.

8

NSS

NOT SOLD SEPARAT

Oring

2шт.
