Запчасти Case TR340 (29.204.020[01]) - HYDROSTATIC PUMP, DRIVE LINES, ELECTRO-HYDRAULIC CONTROLS (29) - HYDROSTATIC DRIVE

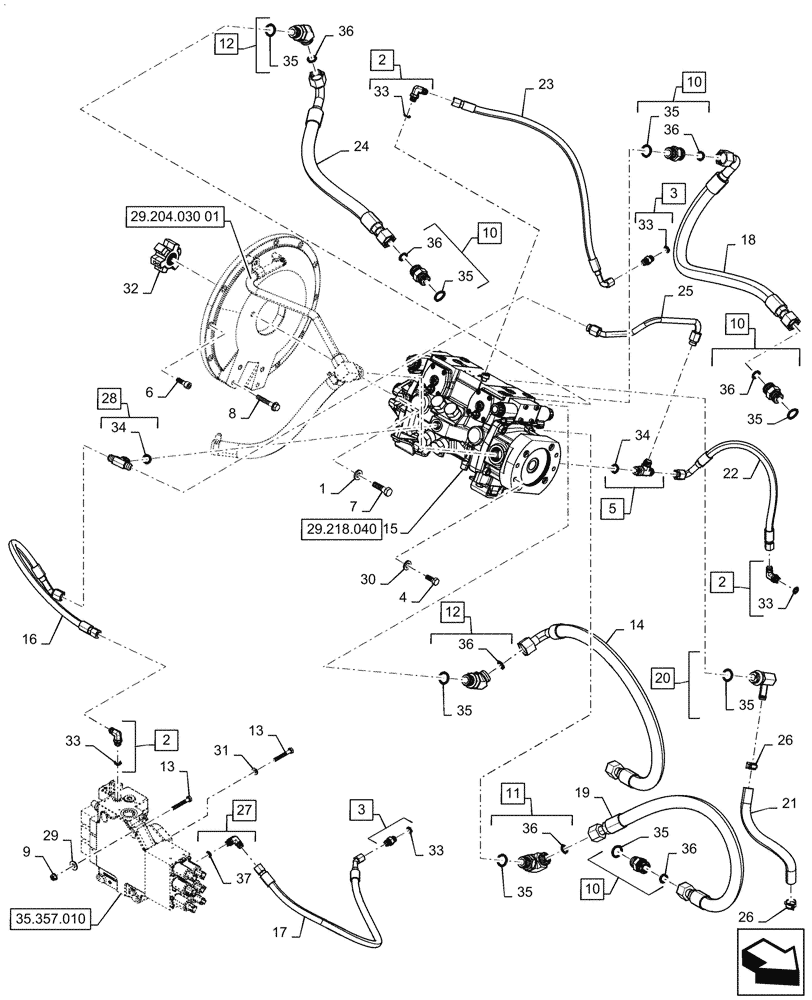

Схема запчастей Case TR340 - (29.204.020[01]) - HYDROSTATIC PUMP, DRIVE LINES, ELECTRO-HYDRAULIC CONTROLS (29) - HYDROSTATIC DRIVE
29.218.040
28
22
33
35
2
36
1
26
35
29
10
6
14
13
36
36
8
10
5
33
24
35
31
34
12
25
36
2
2
36
13
30
12
20
33
33
3
34
37
32
36
33
36
27
15
17
35
16
10
35
7
35
11
26
4
18
19
23
3
35
35
9
10
21
35.357.010
29.204.030 01

Артикул

Название

Примечание

Количество

1

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 33

3шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 33

2шт.

4

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

5

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 34

1шт.

6

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

7

9790095

BOLT,1/2" - 13 x 1-3/4", Gr 8

2шт.

8

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

10

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 35, 36

5шт.

11

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 35, 36

1шт.

12

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 35, 36

2шт.

13

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

14

47645581

HOSE,19mm ID x 1000mm L, SAE 100R19

Tandem Pump to RH Hydrostatic Motor

1шт.

15

47775932

PUMP

45 CC, Hydrostatic, Tandem

1шт.

16

48009499

HYDRAULIC HOSE,10mm ID x 620mm L

Tandem Pump to Loader Valve

1шт.

17

48019269

HYDRAULIC HOSE,10mm ID x 870mm L

Tandem Pump to Brake Valve

1шт.

18

84258848

FLEXIBLE HOSE,19.05mm ID x 896mm L, SAE 100R19

Tandem Pump to LH Hydrostatic Motor

1шт.

19

84258856

FLEXIBLE HOSE,19.05mm ID x 867mm L, SAE 100R19

Tandem Pump to RH Hydrostatic Motor

1шт.

20

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Incl 35

1шт.

21

84273646

HOSE,15.88mm ID x 304.8mm L

1шт.

22

84299736

FLEXIBLE HOSE,9.53mm ID x 512mm L, SAE 100R17

Tandem Pump to Brake Valve

1шт.

23

84309599

FLEXIBLE HOSE,9.53mm ID x 780mm L, SAE 100R17

Tandem Pump to Brake Valve

1шт.

24

84312282

FLEXIBLE HOSE,19.05mm ID x 621mm L, SAE 100R19

Tandem Pump to LH Hydrostatic Motor

1шт.

25

84349300

RIGID TUBE,12.7mm OD

1шт.

26

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

27

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 37

1шт.

28

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 34

1шт.

29

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

30

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

32

87711337

COUPLING,19T, 1-1/8" ID

1шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

34

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

35

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

8шт.

36

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

7шт.

37

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Выбрано товаров: 37
