(90.160.030[02]) - FLOOR MAT, MECHANICAL HAND & FOOT CONTROLS

Запчасти Case TR340 (90.160.030[02]) - FLOOR MAT, MECHANICAL HAND & FOOT CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

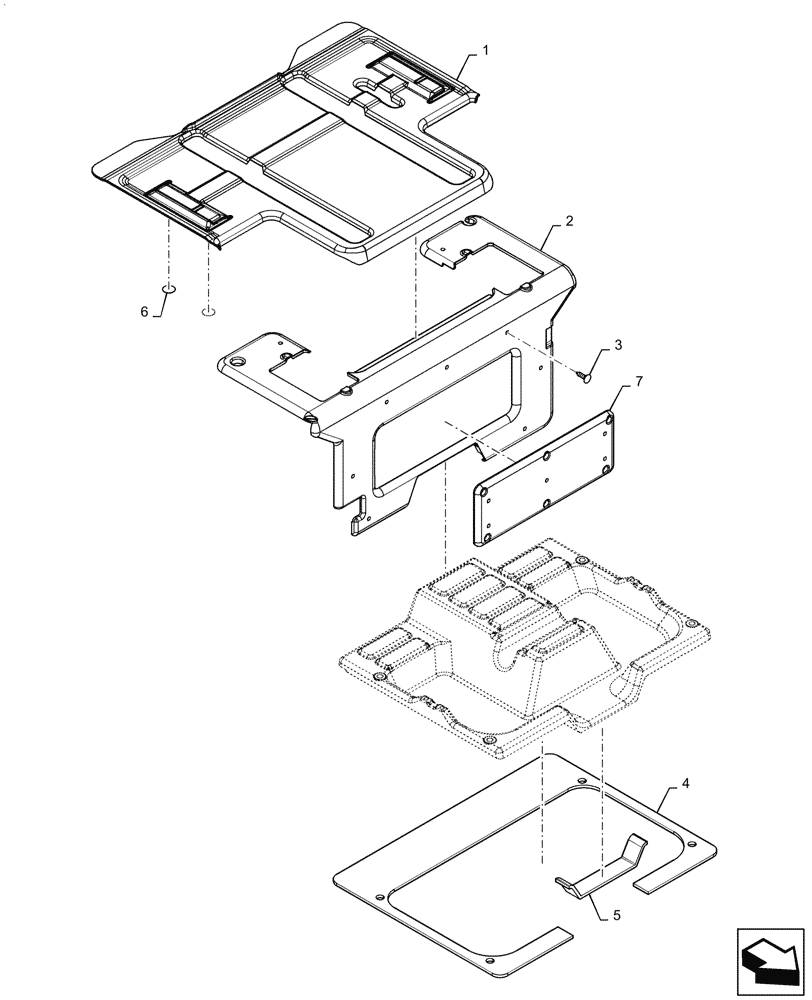

Схема запчастей Case TR340 - (90.160.030[02]) - FLOOR MAT, MECHANICAL HAND & FOOT CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
1
2
7
5
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47912946

FLOOR MAT

Seat Pan

1шт.

2

47916881

FLOOR MAT

Heel Plate

1шт.

3

86620930

FASTENER,Push-In, 1.10" L, Nylon

14шт.

4

84372626

FOAM

Floor Plate

1шт.

5

84372707

FOAM

265mm L, Front Floor Plate

1шт.

6

414635A1

COVER,25.4mm OD x 0.51mm Thk

4шт.

7

47912580

FLOOR MAT

Heel Plate, Fuse Box Access Panel

1шт.

Выбрано товаров: 7
