Запчасти Case TR340 (90.160.020[02]) - ENCLOSED CAB INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

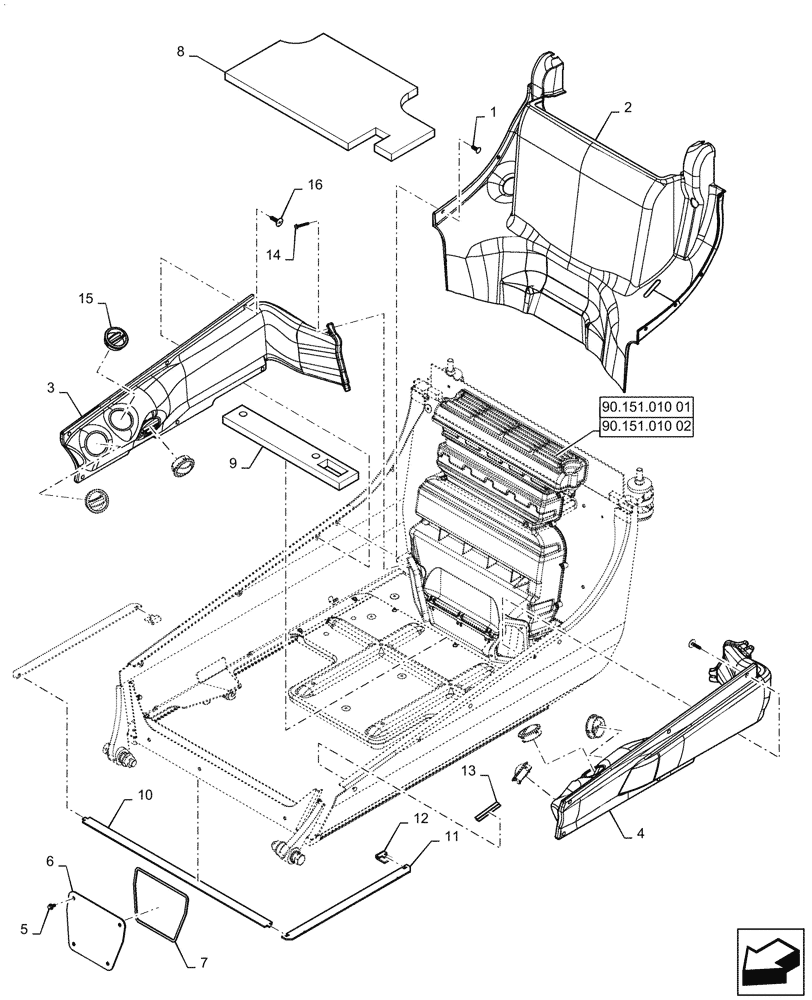

Схема запчастей Case TR340 - (90.160.020[02]) - ENCLOSED CAB INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.010 02
5
7
13
10
12
14
2
9
3
6
11
8
16
15
1
4
90.151.010 01

Артикул

Название

Примечание

Количество

1

47918644

FASTENER,Pine Tree, 26.9mm L, Nylon

Gray

7шт.

2

48052200

TRIM PANEL

Rear Trim, Gray

1шт.

3

47919014

DUCT

LH Trim Panel, Gray

1шт.

4

47919015

DUCT

RH Trim Panel, Gray

1шт.

5

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

4шт.

6

84322838

PLATE

Front Cover, Tan

1шт.

7

84322854

FOAM INSULATION,684mm L x 6mm W x 3mm Thk

Sealing Strip, Cut to Length, 684mm L

1шт.

8

84362126

FOAM INSULATION

Roof, Formed

1шт.

9

84370302

FOAM INSULATION

HVAC Box, Formed

1шт.

10

84411489

FOAM INSULATION

Center Upper Chassis

1шт.

11

84416163

FOAM INSULATION

Upper Chassis Long

2шт.

12

84416164

FOAM INSULATION

Upper Chassis Short

2шт.

13

84469613

TRIM,Bulk 300 FT

Cut to Length, 1580mm L

1шт.

14

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

15

87669161

VENT

Louver

6шт.

16

348452A1

FASTENER,Push-In, 37mm L, Nylon

10шт.

Выбрано товаров: 16
