Запчасти Case TR340 (90.154.010[01]) - GLASS DOOR, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

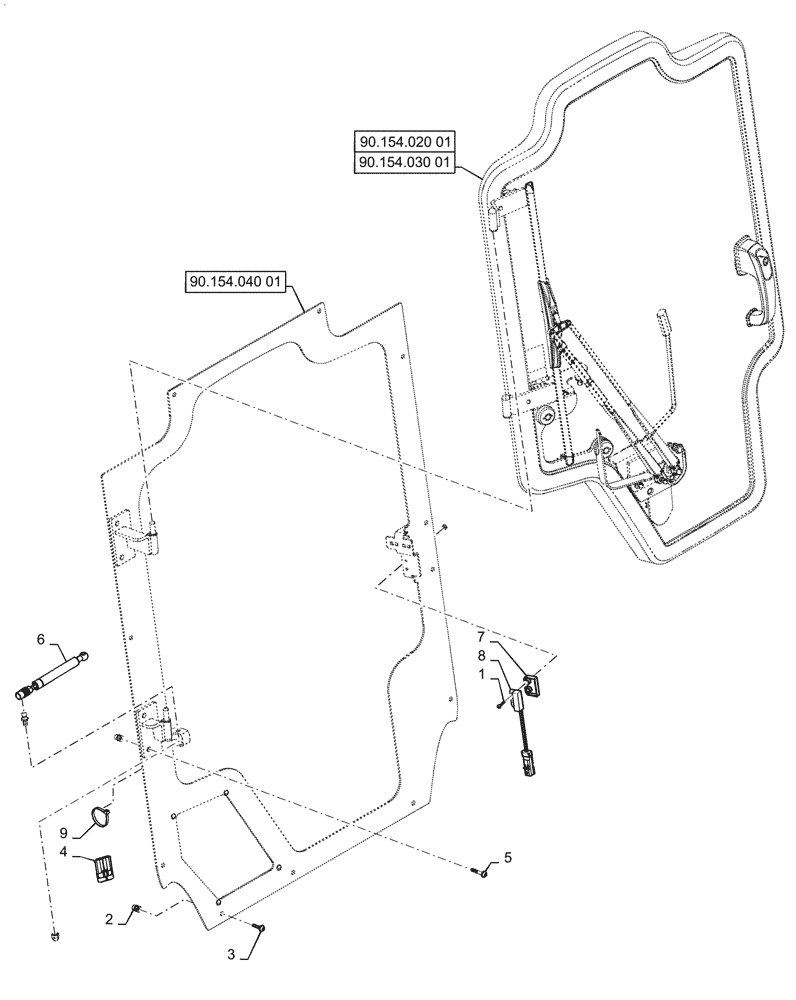

Схема запчастей Case TR340 - (90.154.010[01]) - GLASS DOOR, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.154.030 01
7
8
2
4
3
6
5
9
1
90.154.040 01
90.154.020 01

Артикул

Название

Примечание

Количество

1

84183818

SCREW,Torx Pan HD, M4 x 23.1mm, Cl 4.8

2шт.

2

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

15шт.

3

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

11шт.

4

84331404

WIRE CONNECTOR

Jumper

1шт.

5

84359102

SCREW,Round HD, M6 x 35mm, Cl 10.9

4шт.

6

84378453

GAS STRUT,248mm L Extended, 171mm Compressed

Door Spring

1шт.

7

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

8

87392235

SENSOR

Reed, Non-Contact, Normally Open

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

Выбрано товаров: 9
