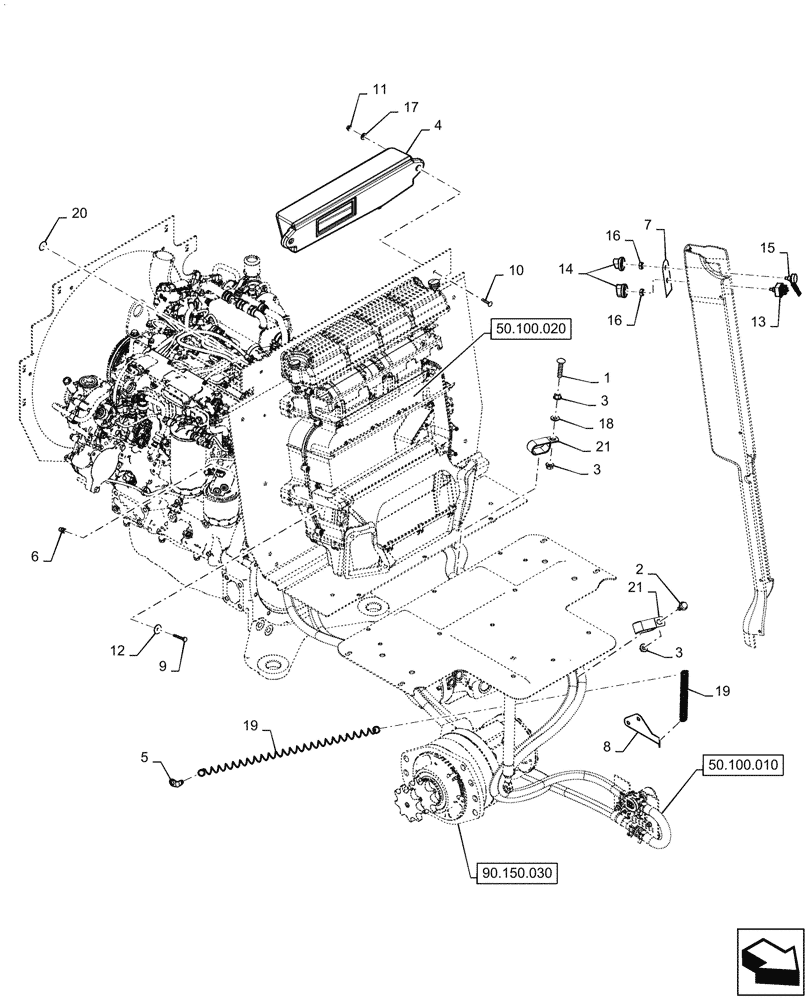

Запчасти Case TR340 (90.151.010[02]) - ENCLOSED CAB, W/ HEATER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

2

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

3

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

4

47568942

DUCT

Air Intake, 529.4mm L

1шт.

5

47679222

BRACKET

HVAC Hose Spring Mounting

1шт.

6

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

7

84347261

DECAL

HVAC Heat Only

1шт.

8

84361522

BRACKET

Loader Valve, Spring Mounting

1шт.

9

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

10

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

11

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

12

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

13

86729669

SWITCH

Blower, 3 Speed, Rotary

1шт.

14

86729670

KNOB

Control

2шт.

15

86729675

SWITCH,5000 Ohm

Temp Selector, Rotary

1шт.

16

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

17

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

18

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

19

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

2шт.

20

414635A1

COVER,25.4mm OD x 0.51mm Thk

2шт.

21

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.
