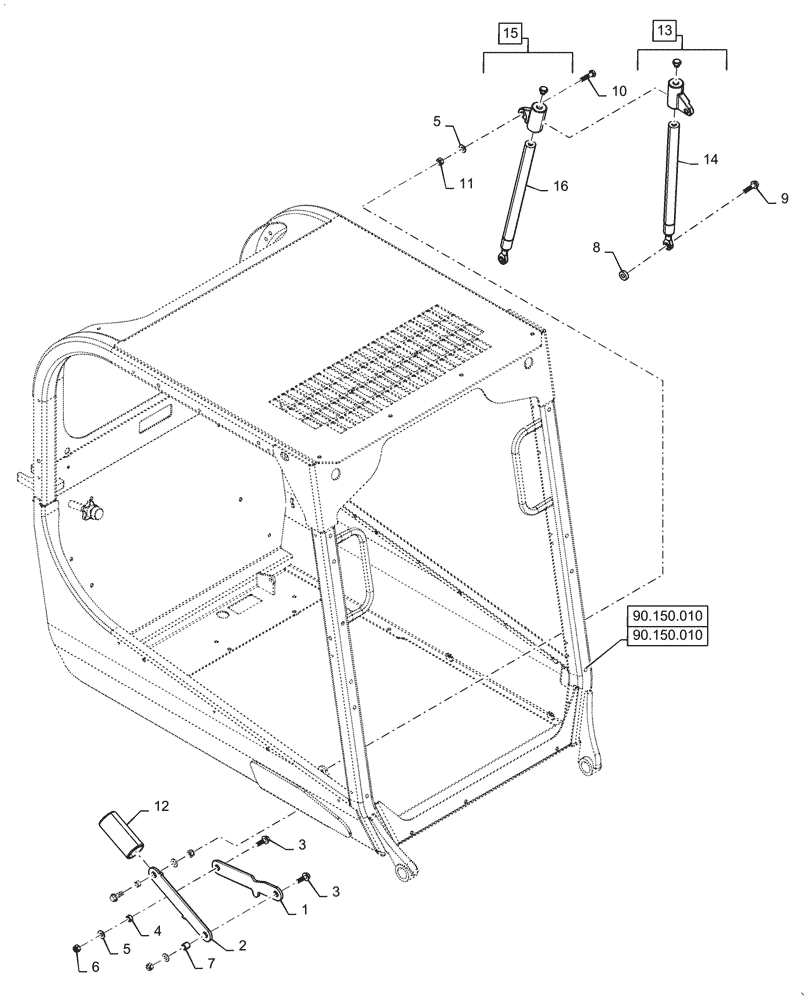

Запчасти Case TR340 (90.150.030) - CAB FRAME & COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47618651

PLATE

Lower Locking Arm

1шт.

2

47624544

PLATE

Upper Locking Arm

1шт.

3

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

4

47528906

SPACER,10.3mm ID x 15.9mm OD x 7.9mm L

2шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

7

87340800

SPACER,5/8" Tube x 15.88mm

1шт.

8

47464479

SPACER,10.5mm ID x 25.4mm OD x 8mm L

1шт.

9

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

1шт.

10

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

1шт.

11

86512554

NUT,M10 x 1.5, Cl 10

1шт.

12

47529788

TUBE,52.4mm ID x 57.2mm OD x 125mm L

Locking Collar, Safety Red

1шт.

13

47537888

GAS STRUT

Assy, Open Cab, Incl 14

1шт.

14

47537885

GAS STRUT

Open Cab, Service

1шт.

15

47537889

GAS STRUT,372mm Extended, 327mm Compressed

Assy, Enclosed Cab, Incl 16

1шт.

16

47537886

GAS STRUT

Enclosed Cab, Service

1шт.
