Запчасти Case TR340 (90.150.010) - CAB FRAME & COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

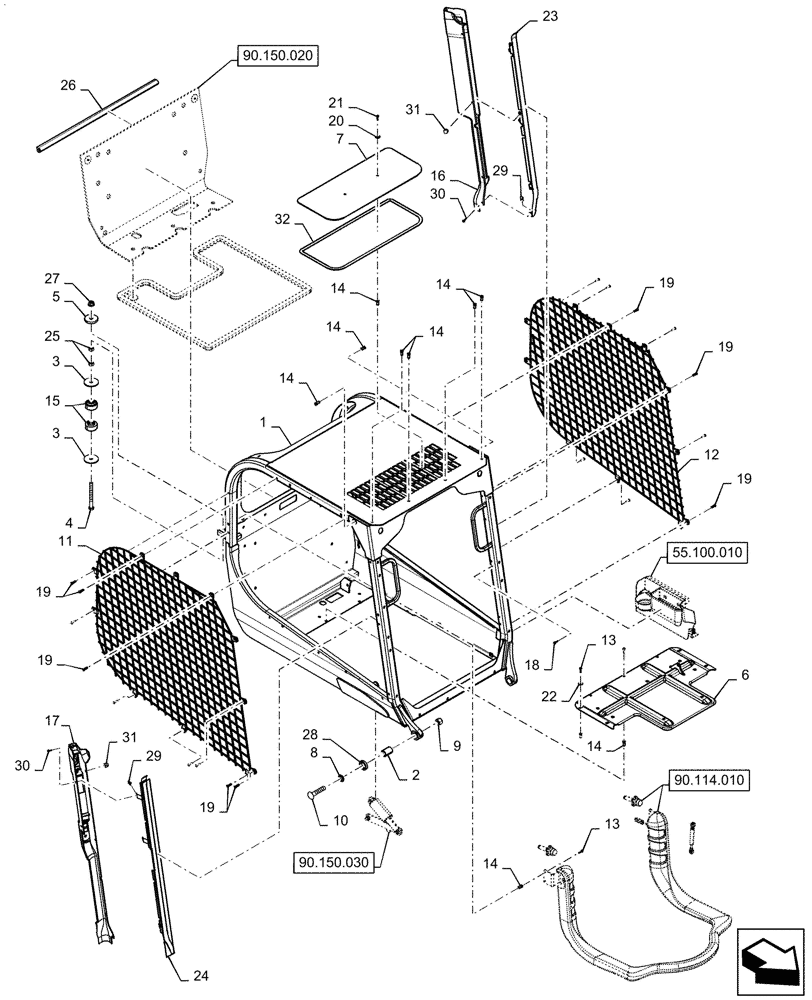

Схема запчастей Case TR340 - (90.150.010) - CAB FRAME & COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.020
19
19
14
13
29
12
10
28
14
5
14
17
29
18
23
19
19
8
16
21
32
15
11
19
1
2
14
3
19
3
14
20
6
27
9
24
7
30
25
26
14
31
14
31
22
4
30
13
90.114.010
55.100.010
90.150.030

Артикул

Название

Примечание

Количество

1

84484008

CAB

ROPS, Gray

1шт.

2

47600184

MOUNT

Cab Isolator, Front

2шт.

3

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

4шт.

4

87698773

BOLT,Hex, M16 x 160mm, Cl 10.9, Full Thd

2шт.

5

84298254

PLATE

Rear Mount, Gray

2шт.

6

84284728

SEAT

Pan, Gray

1шт.

7

84336571

WINDOW

Skylight

1шт.

8

84365968

SEALING WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

9

84010564

NUT,Prev Torque, M20 x 2.5 x 23mm, Cl 10

2шт.

10

84370842

CARRIAGE BOLT,Sht Sq Nk, M20 x 100mm, Cl 10.9, Full Thd

2шт.

11

84583618

SCREEN

LH, Side ROPS

1шт.

12

84583621

SCREEN

RH, Side ROPS

1шт.

13

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

11шт.

14

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

19шт.

15

47699622

MOUNT

Cab Isolator, Rear

4шт.

16

47920902

CONSOLE

LH, A Post, Gray

1шт.

17

47920893

CONSOLE

RH, A Post, Gray

1шт.

18

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

8шт.

19

47915724

RIVET,Domed HD, 1/4” OD x 5/8” L

22шт.

20

394277A1

SEALING WASHER,7mm ID x 18.5mm OD x 3.5mm Thk

2шт.

21

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

2шт.

22

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

23

84473542

BRACKET

LH, Console, Gray

1шт.

24

47526360

BRACKET

RH,Console, Gray

1шт.

25

392530

NUT,M16, Cl 10

4шт.

26

84338534

SEAL,Bulk 30.48m

Cut to Length, 885mm L

1шт.

27

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

28

84420168

SPACER,37mm ID x 50.8mm OD x 10mm L

2шт.

29

86625073

SPRING NUT,M6 x 1

6шт.

30

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

6шт.

31

84473525

CROWN NUT,Hex, #10 – 24 x 10.32mm High

6шт.

32

84371644

RUBBER SEAL

Window Skylight

1шт.

Выбрано товаров: 32
