Запчасти Case TR340 (90.120.010[03]) - SEAT, OPERATOR, MECHANICAL SUSPENSION, CASE (90) - PLATFORM, CAB, BODYWORK AND DECALS

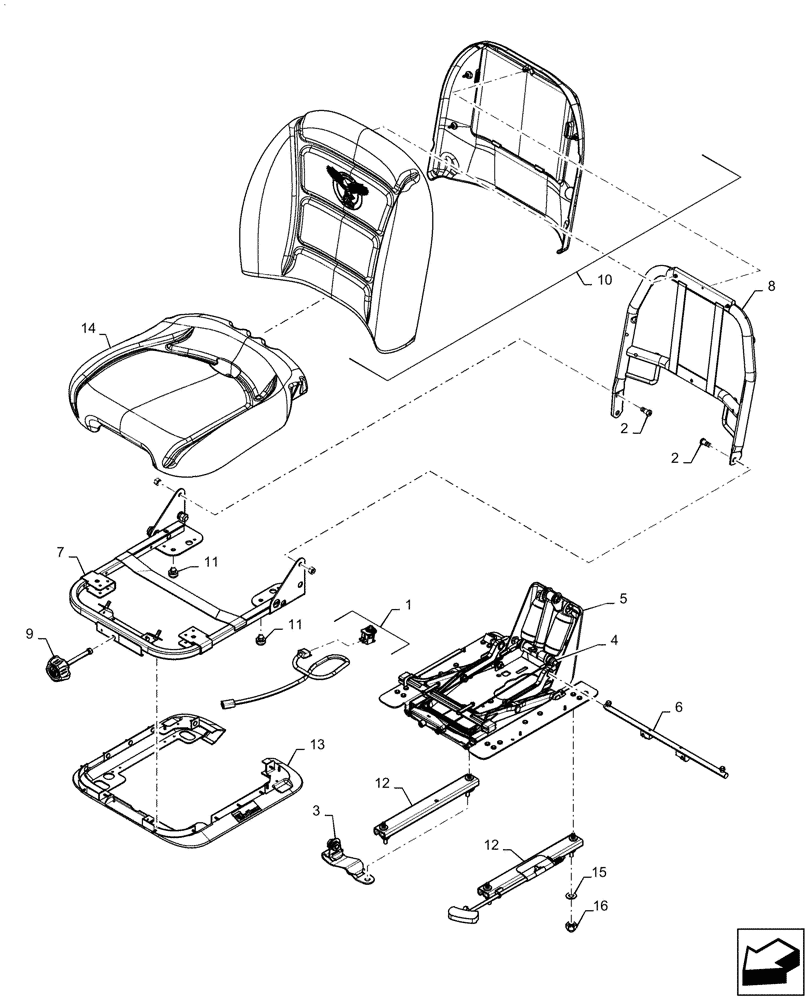

Схема запчастей Case TR340 - (90.120.010[03]) - SEAT, OPERATOR, MECHANICAL SUSPENSION, CASE (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
14
8
12
2
2
11
6
7
3
5
11
12
4
13
15
1
9
16

Артикул

Название

Примечание

Количество

48009740

DRIVER SEAT

Assembly, Incl 1 - 14

1шт.

1

84559411

SERVICE KIT

Seat Switch & Wire Harness

1шт.

2

84559403

SERVICE KIT

Pivot Bolt

1шт.

3

84559418

SERVICE KIT

Tether

1шт.

4

48051324

KIT

Saddle

1шт.

5

47923415

KIT

Suspension Assy

1шт.

6

48051328

SHAFT

Load

1шт.

7

47923417

KIT

Seat Frame

1шт.

8

47923421

KIT

Back Frame

1шт.

9

48051330

KNOB

Weight Adjust

1шт.

10

48051333

CUSHION

Assy, Back, W/ Panel

1шт.

11

47923420

KIT

Bumper & Misc

1шт.

12

84559416

SERVICE KIT

Seat Adjuster Slide

1шт.

13

84559402

SERVICE KIT

Boot

1шт.

14

48051309

SEAT CUSHION

1шт.

15

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

16

86629544

NUT,5/16” – 18, GR B

4шт.

Выбрано товаров: 17
