Запчасти Case TR340 (90.105.010) - INSULATION HOOD & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

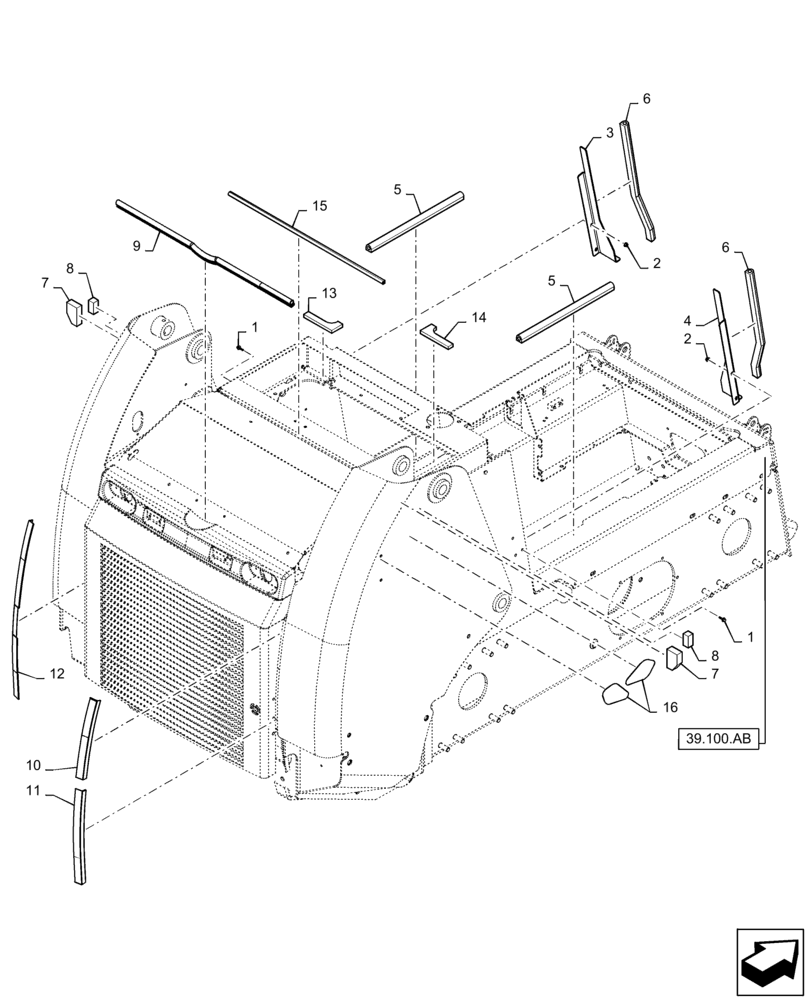

Схема запчастей Case TR340 - (90.105.010) - INSULATION HOOD & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
14
7
11
15
16
6
2
3
9
2
1
10
4
8
6
39.100.ab
12
5
13
1
7
8

Артикул

Название

Примечание

Количество

1

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

3

47367373

COVER

LH, Chassis

1шт.

4

47367375

COVER

RH, Chassis

1шт.

5

47729721

RUBBER SEAL,465mm L

Adhesive

2шт.

6

47729722

RUBBER SEAL,545mm L

Adhesive

2шт.

7

47738609

INSULATION,80mm L

Foam, Fixed Hood

2шт.

8

47739308

INSULATION,50mm L

Foam, Fixed Hood

2шт.

9

47764946

SEALING STRIP,877mm L

Bulb

1шт.

10

47768631

RUBBER SEAL,316mm L

RH, Upper Door, Flap

1шт.

11

47768632

RUBBER SEAL,403mm L

RH, Lower Door, Flap

1шт.

12

47772547

RUBBER SEAL,723mm L

LH, Door, Flap

1шт.

13

47773099

INSULATION,140mm L

LH, Foam, Fixed Hood

1шт.

14

47773131

INSULATION,140mm L

RH, Foam, Fixed Hood

1шт.

15

47811235

RUBBER SEAL,775mm L

Adhesive

1шт.

16

84300911

ACCESS COVER

Lexan, Aux Electrical

2шт.

Выбрано товаров: 16
