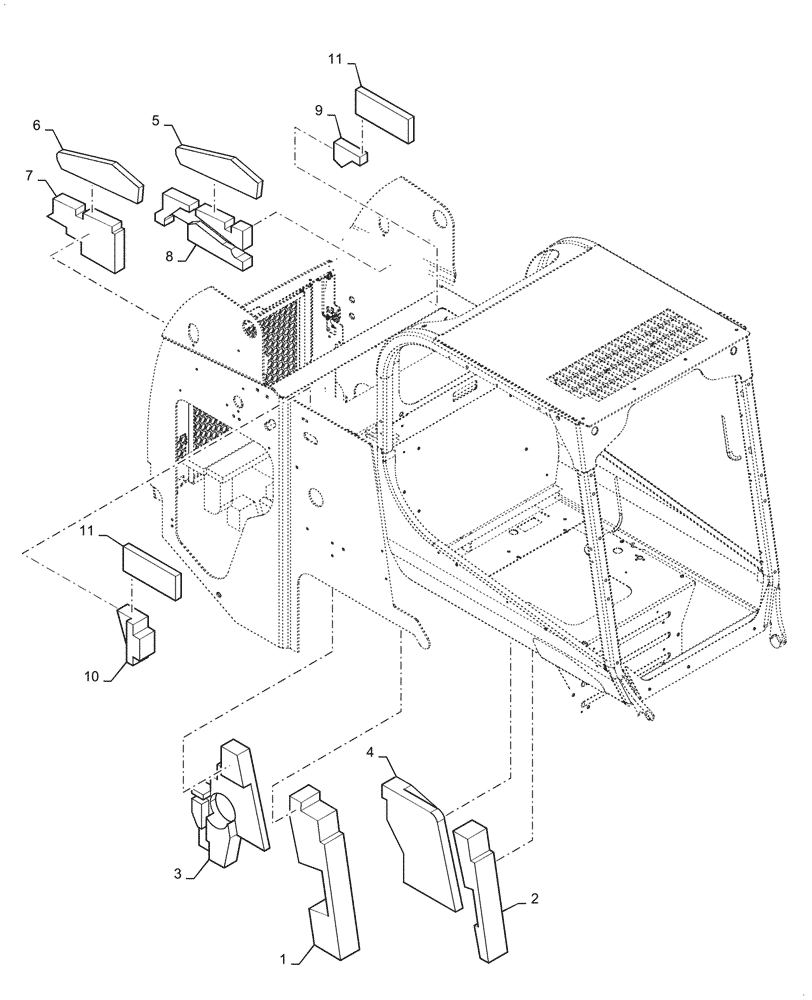

Запчасти Case TR340 (90.105.010[03]) - ENGINE ACCESSORIES W-SOUND EU CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case TR340 - (90.105.010[03]) - ENGINE ACCESSORIES W-SOUND EU CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/5513941.png)
9
7
11
10
2
1
11
3
4
5
6
8
№
Артикул
Название
Примечание
Количество
1
47838917
FOAM INSULATION
LH, Chassis Front
1шт.
2
47838918
FOAM INSULATION
Left Tower Rear
1шт.
3
47928262
INSULATION
RH, Tower Rear
1шт.
4
47927938
INSULATION
Left Tower Mid
1шт.
5
47927928
INSULATION
Tilt Hood
1шт.
6
47927927
INSULATION
Tilt Hood
1шт.
7
47927931
INSULATION
RH, Tower
1шт.
8
47927934
INSULATION
LH, Tower
1шт.
9
47927935
INSULATION
LH, Tower
1шт.
10
47929707
INSULATION
RH, Tower Rear
1шт.
11
84481987
FOAM INSULATION,280mm L x 111.9mm W x 30mm Thk
Fuel Tank
2шт.
Выбрано товаров: 11
