Запчасти Case TR340 (90.105.010[01]) - ENGINE ACCESSORIES W/ SOUND EU OPEN (90) - PLATFORM, CAB, BODYWORK AND DECALS

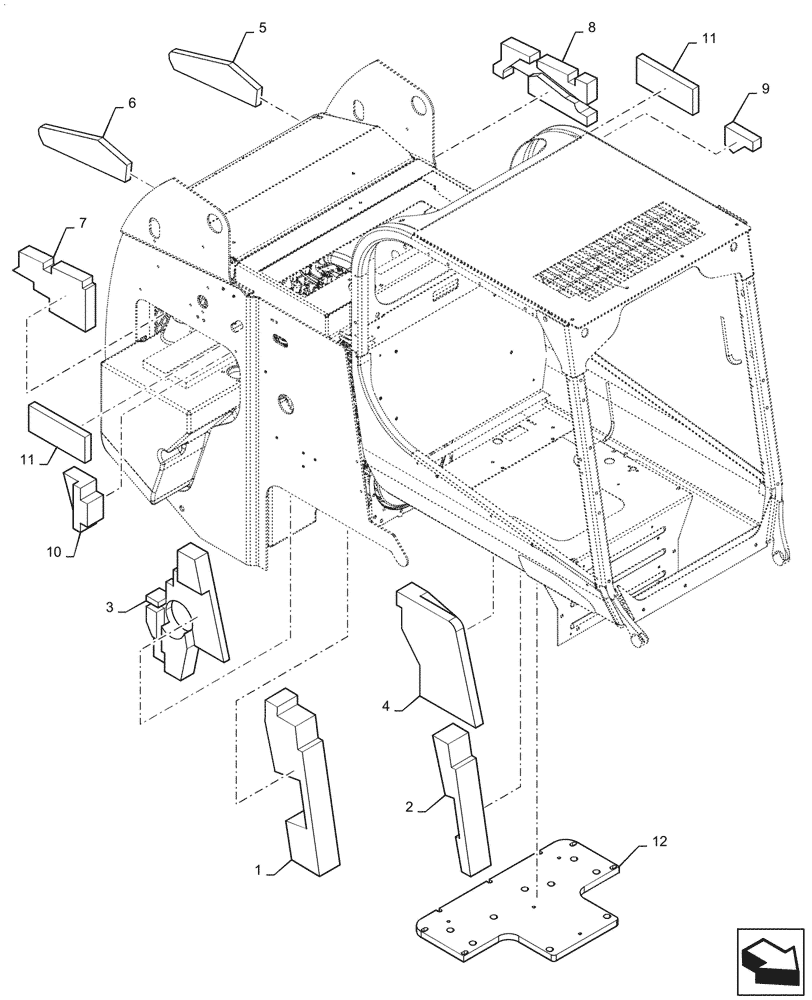

Схема запчастей Case TR340 - (90.105.010[01]) - ENGINE ACCESSORIES W/ SOUND EU OPEN (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
10
3
4
11
8
2
6
5
7
9
11
1

Артикул

Название

Примечание

Количество

1

47838917

FOAM INSULATION

LH, Chassis Front

1шт.

2

47838918

FOAM INSULATION

Left Tower Front

1шт.

3

47928262

INSULATION

RH, Tower Rear

1шт.

4

47927938

INSULATION

Left Tower

1шт.

5

47927928

INSULATION

Tilt Hood

1шт.

6

47927927

INSULATION

Tilt Hood

1шт.

7

47927931

INSULATION

RH, Tower

1шт.

8

47927934

INSULATION

LH, Tower

1шт.

9

47927935

INSULATION

LH, Tower

1шт.

10

47929707

INSULATION

RH, Tower Rear

1шт.

11

84481987

FOAM INSULATION,280mm L x 111.9mm W x 30mm Thk

Fuel Tank

2шт.

12

84372040

FOAM

Seat Pan

1шт.

Выбрано товаров: 12
