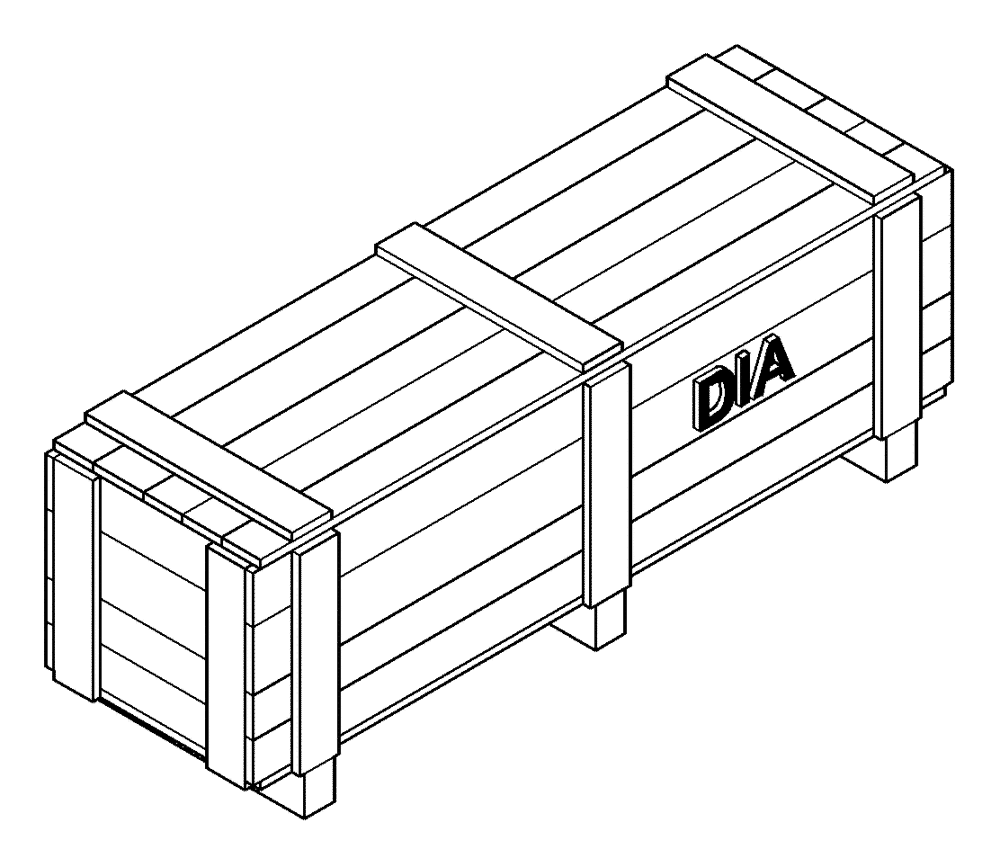

Запчасти Case TR340 (88.100.90[20]) - DIA KIT, CAB SIDE WINDOWS (88) - ACCESSORIES

1

48051923

KIT

Side Windows, Incl 2 - 12

1шт.

2

48051926

INSTRUCTION

Sheet

1шт.

3

84488997

WINDOW

RH, Side

1шт.

4

84488998

WINDOW

LH, Side

1шт.

5

84473111

BRACKET

Window, Gray

8шт.

6

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

24шт.

7

84473199

BRACKET

RH, Window, Gray

2шт.

8

84473201

BRACKET

LH, Window, Gray

2шт.

9

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

12шт.

10

84425058

FOAM INSULATION,100mm L x 40mm W x 10mm Thk

Window

2шт.

11

47915724

RIVET,Domed HD, 1/4” OD x 5/8” L

22шт.

12

48046436

TRIM

42mm L

8шт.
