Запчасти Case TR340 (55.404.030) - ROAD LIGHTS SO. KOREA (55) - ELECTRICAL SYSTEMS

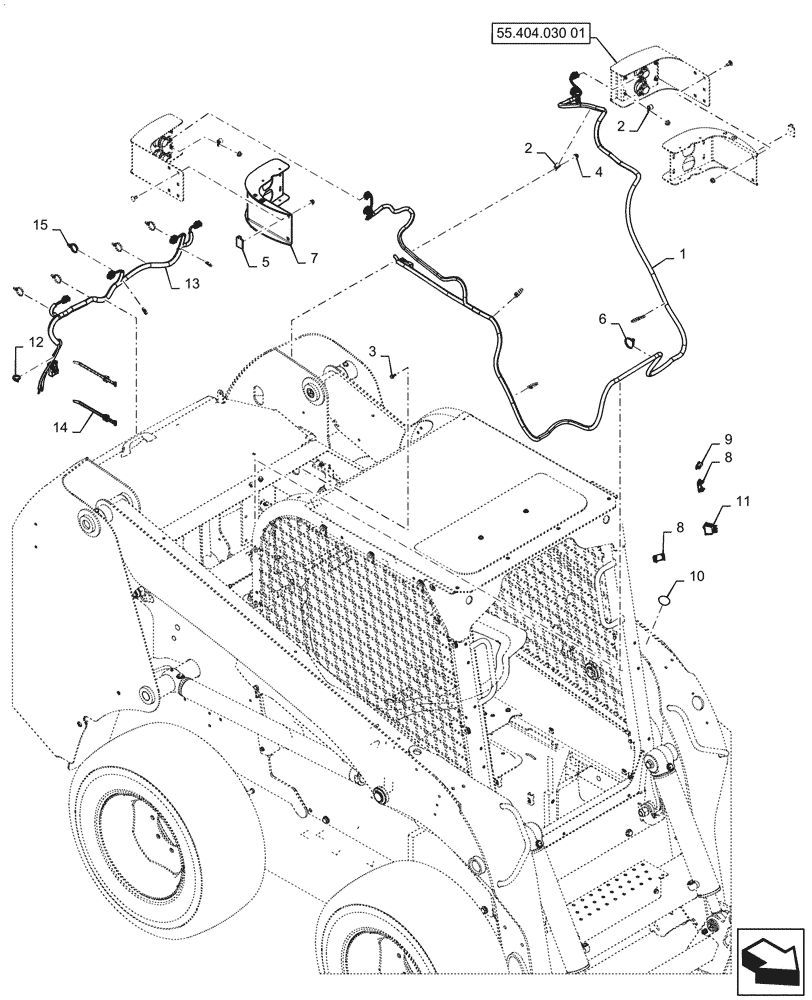

Схема запчастей Case TR340 - (55.404.030) - ROAD LIGHTS SO. KOREA (55) - ELECTRICAL SYSTEMS
55.404.030 01
2
11
4
8
9
14
8
12
1
10
5
13
6
7
2
3
15

Артикул

Название

Примечание

Количество

1

47680488

WIRE HARNESS

Rear, Road Jumper

1шт.

2

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

4шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

5

84416164

FOAM INSULATION

Upper, Chassis Short

2шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

7

47870827

BRACKET

Road Light, Power Tan

2шт.

8

126844A1

PLUG,1.427” x .62” , Plastic

2шт.

9

86627432

PLASTIC PLUG

Cover Hole

1шт.

10

429630A2

CAP COVER,43mm OD

2шт.

11

84263153

SWITCH

Rocker, Loader Lockout

1шт.

12

263117

CABLE TIE,292.1mm L, Nylon, Black

3шт.

13

47767927

WIRE HARNESS

Rear, Lamp Jumper

1шт.

14

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

15

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

Выбрано товаров: 15
