Запчасти Case TR340 (10.414.AC) - FAN SHROUD MOUNTING PARTS (10) - ENGINE

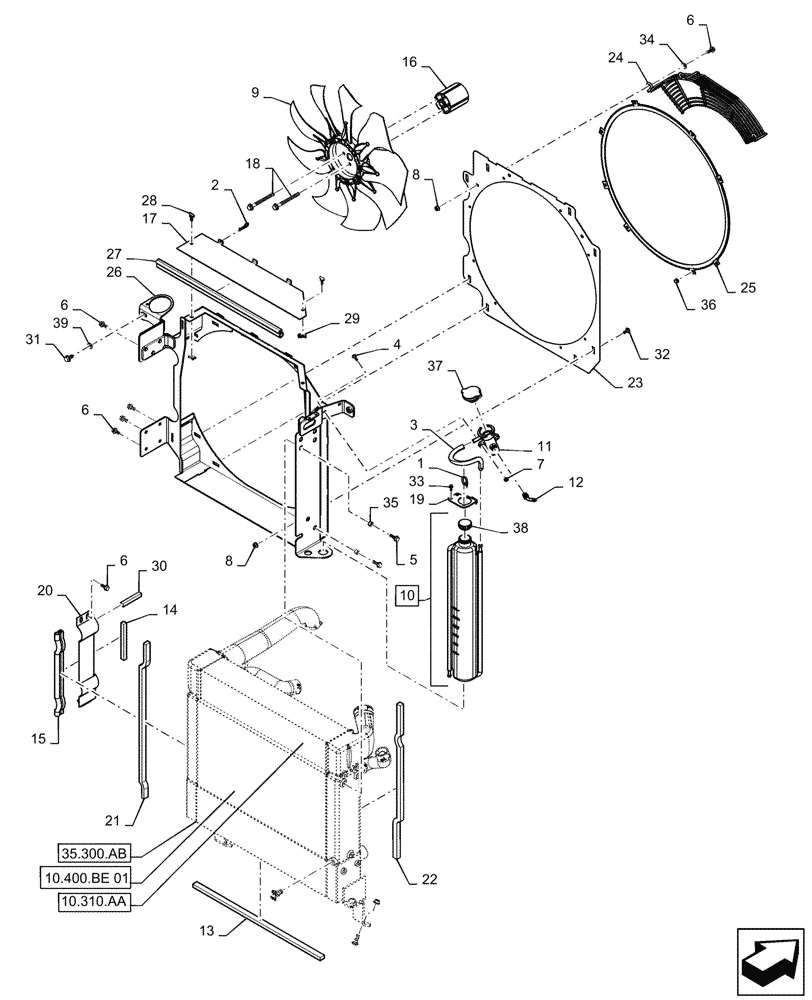

Схема запчастей Case TR340 - (10.414.AC) - FAN SHROUD MOUNTING PARTS (10) - ENGINE
10.310.aa
11
35
26
25
6
27
1
32
6
8
16
23
22
15
18
8
6
38
29
20
21
13
17
39
6
36
14
34
3
7
28
2
30
9
4
5
33
10
37
12
19
31
24
10.400.be 01
35.300.ab

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

1шт.

2

270964

COTTER PIN,3/8" x 1.62" x .094", Int Hair

1шт.

3

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

0.7 FT

1шт.

4

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

2шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

11шт.

9

47488901

FAN,9 Blades, 560mm OD

Clockwise Pusher

1шт.

10

47490003

BOTTLE

Coolant Recovery, Incl 38

1шт.

11

47815834

NECK FILLER

Radiator, Start Year: 01-APR-15

1шт.

12

47591117

FITTING,90 Degree Elbow, 5/16" Barb x 1/4" - 18 Male NPT

1шт.

13

47632202

STRIP,596.9mm L

596.9mm L, Foam

1шт.

14

47632203

STRIP,164.2mm L

164.2mm L, Foam

1шт.

15

47632205

SEAL

296mm L, Bulb, Years: -31-MAR-15

1шт.

16

47641067

SPACER

74mm OD, Fan

1шт.

17

47711875

BRACKET

Shroud Access

1шт.

18

47711884

BOLT,M10 x 1.5 x 105mm, Cl 8.8

4шт.

19

47816752

BRACKET

Coolant Bottle, Upper

1шт.

20

47842078

BRACKET

Radiator Access

1шт.

21

47764120

FOAM,631.6mm L

631.6mm L, Strip

1шт.

22

47764121

FOAM,630.4mm L

630.4mm L, Strip

1шт.

23

47870900

PLATE

Fan Adjustment, Start Year: 14-JUL-15

1шт.

Units Built Before 14-Jul-2015, Must be Serviced W/ 47870838

1шт.

24

47766361

GUARD

Fan

1шт.

25

47870838

BRUSH

Circular, Start Year: 14-JUL-15

1шт.

Units Built Before 14-Jul-2015, Must be Serviced W/ 47870900

1шт.

26

47812161

SHROUD

Assy, Fan

1шт.

27

84201450

DOOR SEAL,575mm L

Top Shroud

1шт.

28

84528025

FASTENER,29.3mm L

29.3mm L, Wing Head

2шт.

29

84528035

CLIP,24.7mm L

24.7mm L, Nut

2шт.

30

84551644

FOAM

90mm L, Strip, Years: -31-MAR-15

1шт.

31

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

32

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

8шт.

33

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

2шт.

34

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

35

87026609

SPACER,8.48mm ID x 12.7mm OD x 9.53mm L

7шт.

36

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

8шт.

37

87406949

FILLER CAP

16 PSI, Radiator

1шт.

38

R50468

CAP

Coolant Recovery Bottle

1шт.

39

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

2шт.

Выбрано товаров: 41
