Запчасти Case TR340 (10.304.AF) - OIL FILTER, CONNECTORS & LINES (10) - ENGINE

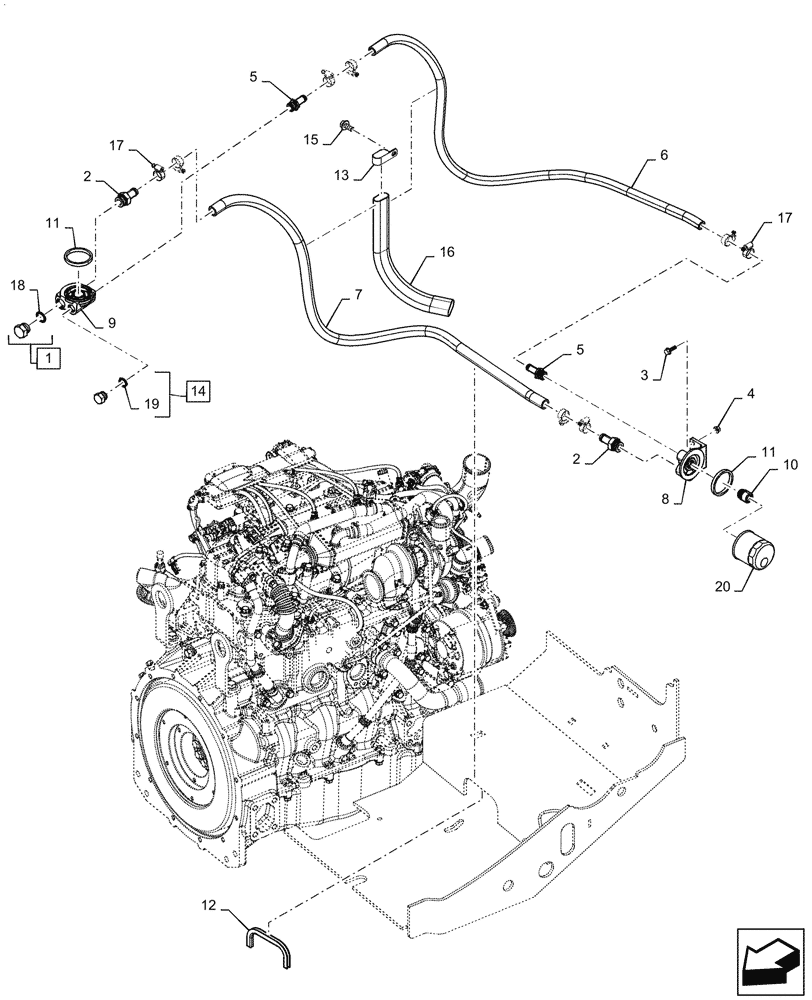

Схема запчастей Case TR340 - (10.304.AF) - OIL FILTER, CONNECTORS & LINES (10) - ENGINE
6
8
19
4
7
18
20
10
13
17
3
11
12
5
9
5
14
1
11
16
15
17
2
2

Артикул

Название

Примечание

Количество

1

163410

PLUG,1-1/16" - 12 ORB

Incl 18

1шт.

2

47894718

FITTING,1 - 1/16" - 12 ORB x 3/4" Hose, Barb

2шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

5

47894834

FITTING,5/8" Hose Barb x 7/8" - 14 ORB

2шт.

6

47657270

HOSE,19.10mm ID x 1400mm L, SAE 100R6

1шт.

7

47657271

HOSE,15.90mm ID x 1400mm L, SAE 100R6

1шт.

8

84296830

ADAPTER

Oil Filter

1шт.

9

84296854

ADAPTER

Remote Oil Filter

1шт.

10

84297794

ADAPTER

Filter Head

1шт.

11

84303971

SEALING RING,62.5mm ID x 72mm OD x 8mm Thk

2шт.

12

84554254

TRIM,30480mm L

1шт.

13

47048664

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

14

86512512

PLUG,7/8" - 14 ORB

Incl 19

1шт.

15

87343550

FLANGE BOLT,Hex, M12 x 25mm

1шт.

16

47895331

SLEEVE

Protective

1шт.

17

84499092

CLAMP,Min 14mm, Max 27mm x 14mm Thk

4шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

47535939

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

1шт.

Выбрано товаров: 20
