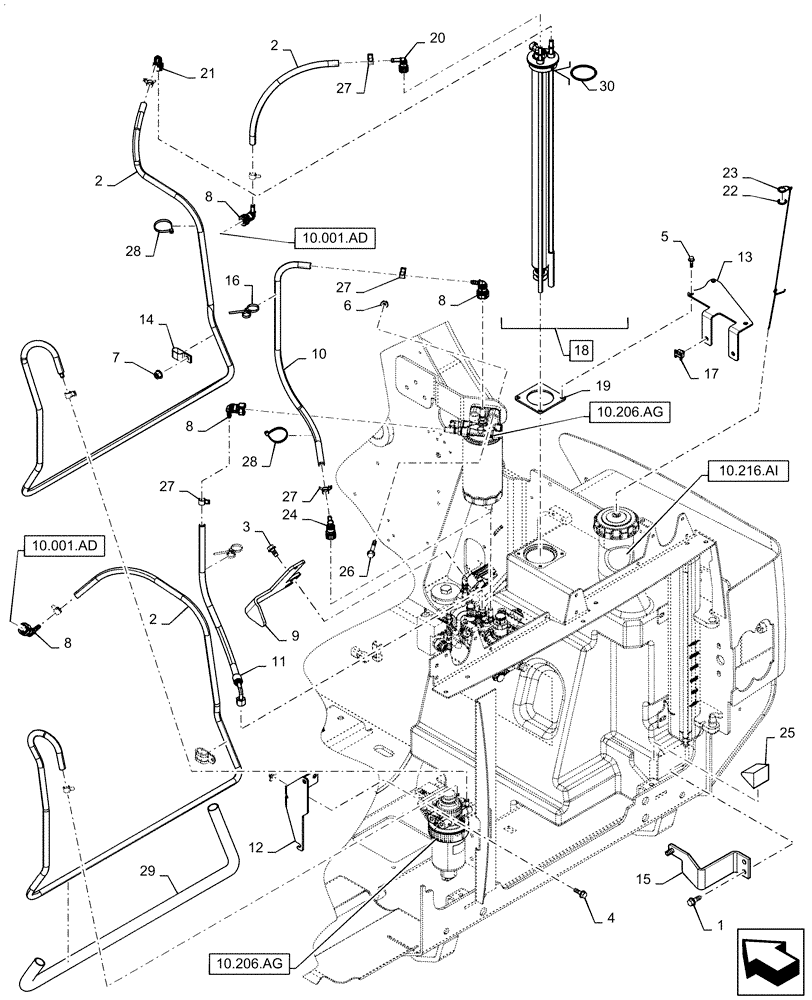

Запчасти Case TR340 (10.216.BA) - FUEL LINES (10) - ENGINE

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

2

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

15.7 FT

1шт.

3

637964

SELF-TAP SCREW,Hex, 3/8" - 16 x 3/4"

2шт.

4

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

8

47566816

FITTING,Fuel, 5/16" Hose Barb x 11.8mm J2044

3шт.

9

47653457

BRACKET

Fuel Tank

1шт.

10

47704431

HOSE,7.94mm ID x 678mm L, SAE 30R9

1шт.

11

47767838

FUEL HOSE,8mm ID x 560mm L

W/ 90° Fittting

1шт.

12

47786281

BRACKET

Fuel Filter Mounting

1шт.

13

47770018

BRACKET

Fuel Line Routing

1шт.

14

47770021

CLAMP,14.3mm, Coat, 11.9mm Bolt Hole, P Type

4шт.

15

47771232

BRACKET

Tank Retainer

1шт.

16

82013031

CABLE TIE,193mm L

Nylon

2шт.

17

84259663

CABLE TIE,228.6mm L, Nylon, Black

Polyamide 6.6

3шт.

18

84268571

SENDER UNIT

Fuel, Incl 30

1шт.

19

84338049

MOUNTING PLATE

Sender Retaining

1шт.

20

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

1шт.

21

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

1шт.

22

84367737

LOCK WASHER,22.6mm OD x 1.27mm Thk

1шт.

23

84370069

CHAIN

Fuel Cap

1шт.

24

84553918

FITTING,90 Degree Quick Connect, 9.89mm Hose Bead

2шт.

25

84602030

PAD

25.4mm - 30.5mm L, Foam

2шт.

26

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

27

87436932

CLAMP,13.9mm - 15.5mm, Spring

9шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

29

87439990

GUARD,46mm ID x 900mm L, Nylon Woven

Sleeve

1шт.

30

84485157

SEAL

64.6mm ID x 5.7mm Thk, Fuel Sender

1шт.
