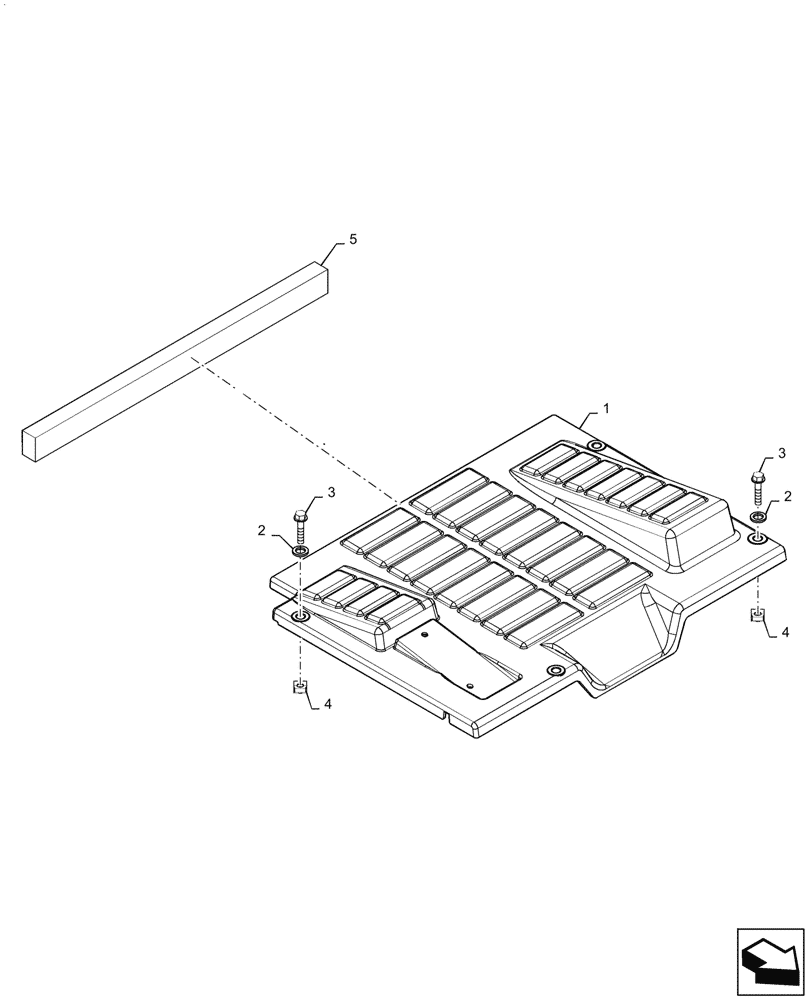

Запчасти Case TR340 (90.160.AS[01]) - FLOOR PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47510135

FLOOR

Plate Assy

1шт.

2

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

3

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

4шт.

4

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

5

47917812

FOAM INSULATION,215.7mm L x 31.8mm W x 25.4mm Thk

Lower Heel Plate

1шт.
