(90.160.AR[02]) - FLOOR MAT, MECHANICAL FOOT CONTROLS

Запчасти Case TR340 (90.160.AR[02]) - FLOOR MAT, MECHANICAL FOOT CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

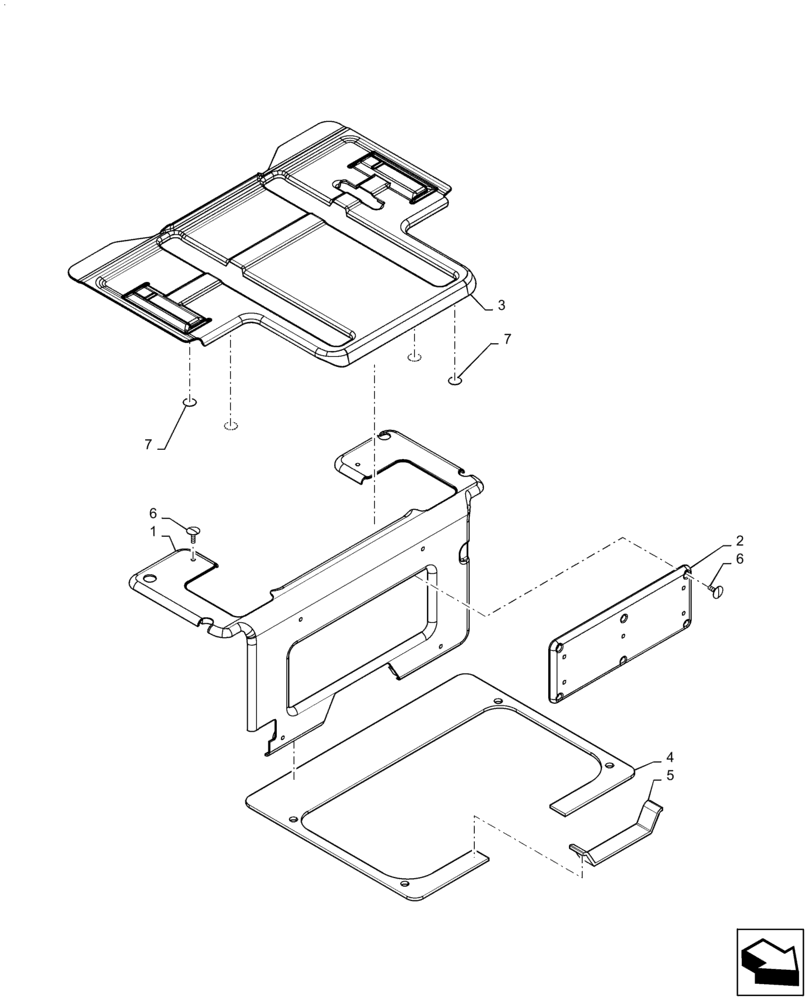

Схема запчастей Case TR340 - (90.160.AR[02]) - FLOOR MAT, MECHANICAL FOOT CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
3
2
1
6
7
6
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47619029

FLOOR MAT

Heel Plate

1шт.

2

47625604

FLOOR MAT

Heel Plate Access Panel

1шт.

3

84259693

FLOOR MAT

Seat Pan

1шт.

4

84372626

FOAM

624mm L, Pedal Floor Plate

1шт.

5

84372707

FOAM

265mm L, Front Floor Plate

1шт.

6

86620930

FASTENER,Push-In, 1.10" L, Nylon

11шт.

7

414635A1

COVER,25.4mm OD x 0.51mm Thk

4шт.

Выбрано товаров: 7
