(88.100.55[01]) - DIA KIT, MECHANICAL JUMPER HARNESS

Запчасти Case TR340 (88.100.55[01]) - DIA KIT, MECHANICAL JUMPER HARNESS (88) - ACCESSORIES

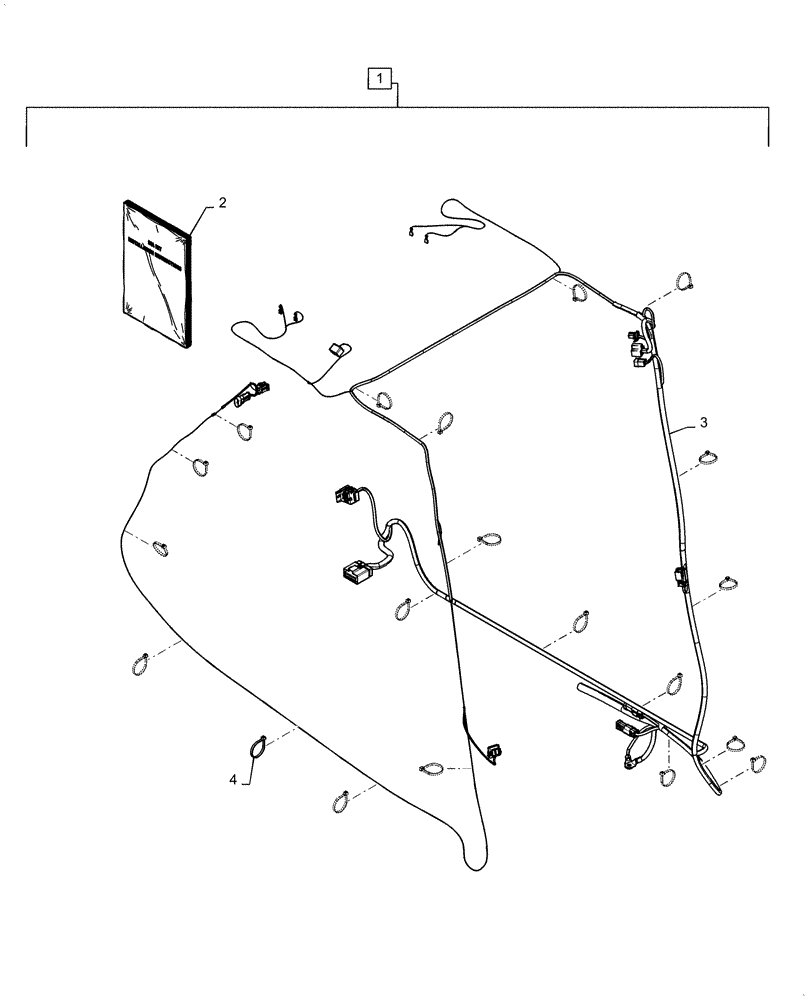

Схема запчастей Case TR340 - (88.100.55[01]) - DIA KIT, MECHANICAL JUMPER HARNESS (88) - ACCESSORIES
2
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47707226

KIT

Mechanical Jumper Harness, Incl 2 - 4

1шт.

2

47707234

INSTRUCTION

Sheet

1шт.

3

47707240

WIRE HARNESS

Mechanical Jumper

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

20шт.
