Запчасти Case TR340 (82.100.AG) - COUPLER FRAME (82) - FRONT LOADER & BUCKET

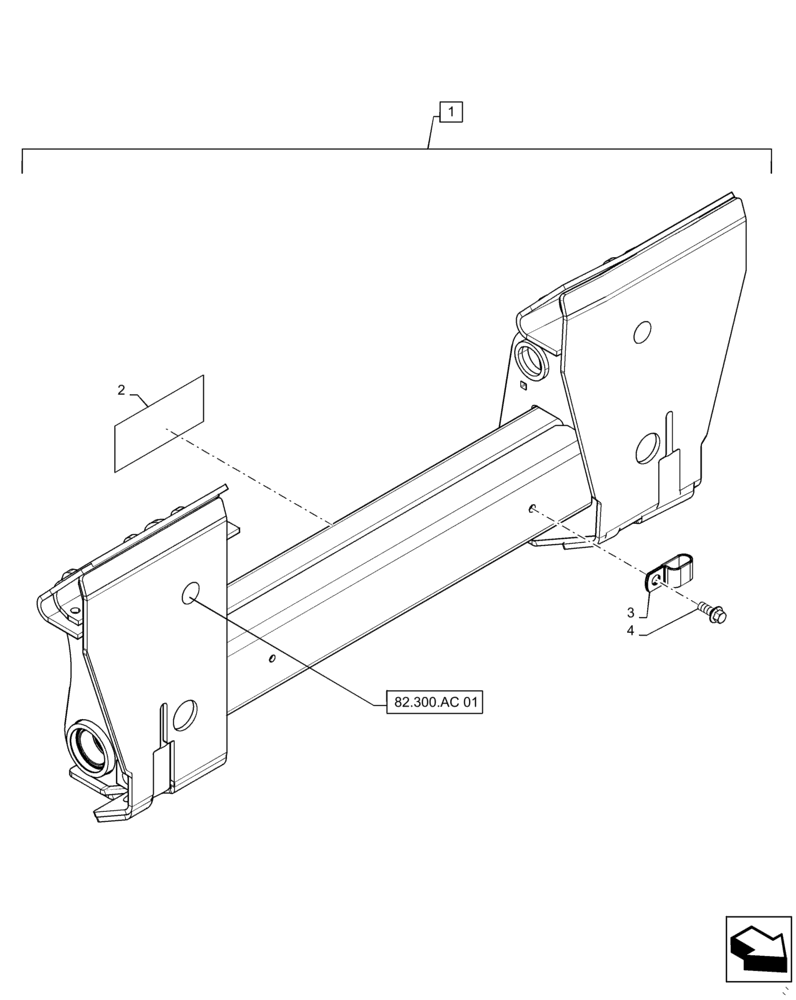

Схема запчастей Case TR340 - (82.100.AG) - COUPLER FRAME (82) - FRONT LOADER & BUCKET
1
2
4
82.300.ac 01
3

Артикул

Название

Примечание

Количество

1

47550001

KIT

Service Frame Coupler, Incl 2 - 4

1шт.

1

47550003

KIT

Service Frame Coupler, Incl 2 - 4, For Large Frame Track Units Only

1шт.

2

84367561

WARNING DECAL

Crush Hazard

1шт.

3

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

1шт.

Used on Hydraulic Applications ONLY

1шт.

4

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

1шт.

Used on Hydraulic Applications ONLY

1шт.

Выбрано товаров: 7
