Запчасти Case TR340 (55.512.BW[01]) - MULTIFUNCTION ELECTRICAL (55) - ELECTRICAL SYSTEMS

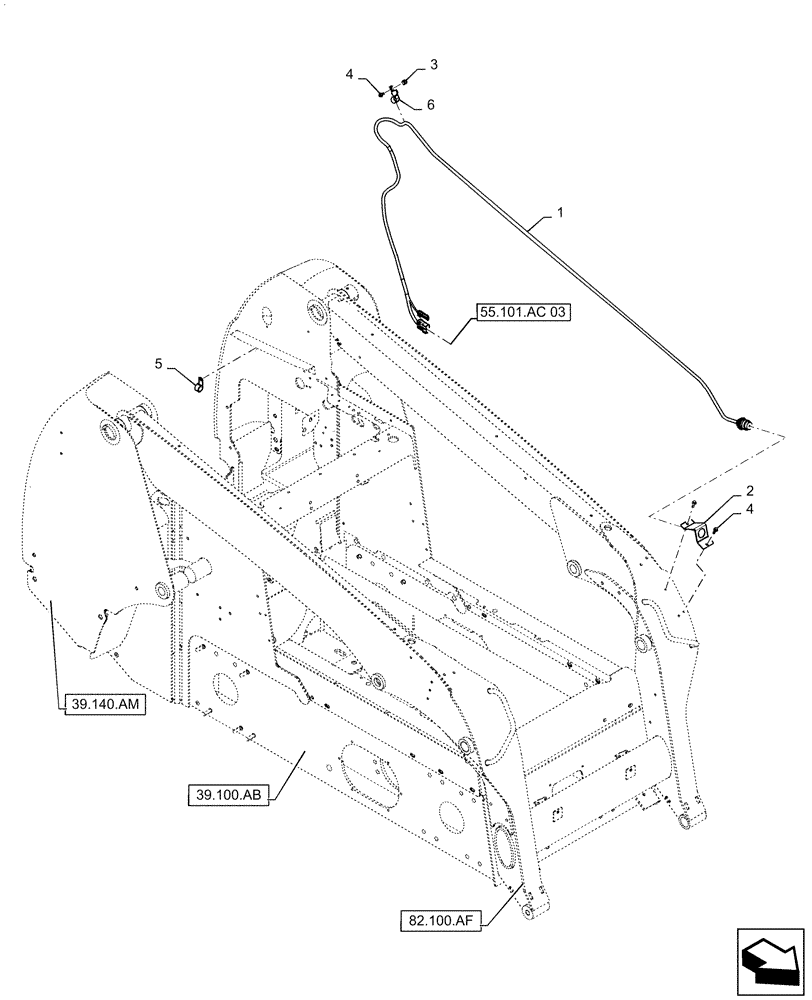

Схема запчастей Case TR340 - (55.512.BW[01]) - MULTIFUNCTION ELECTRICAL (55) - ELECTRICAL SYSTEMS
39.100.ab
4
3
2
5
1
6
4
55.101.ac 03
39.140.am
82.100.af

Артикул

Название

Примечание

Количество

1

84251321

WIRE HARNESS

Boom, Aux Electric

1шт.

2

84293533

BRACKET, SUPPORTING

Front Aux Electric

1шт.

3

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

4

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

5

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

6

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

Выбрано товаров: 6
