Запчасти Case TR340 (55.404.CY) - EU ROAD LIGHTS (55) - ELECTRICAL SYSTEMS

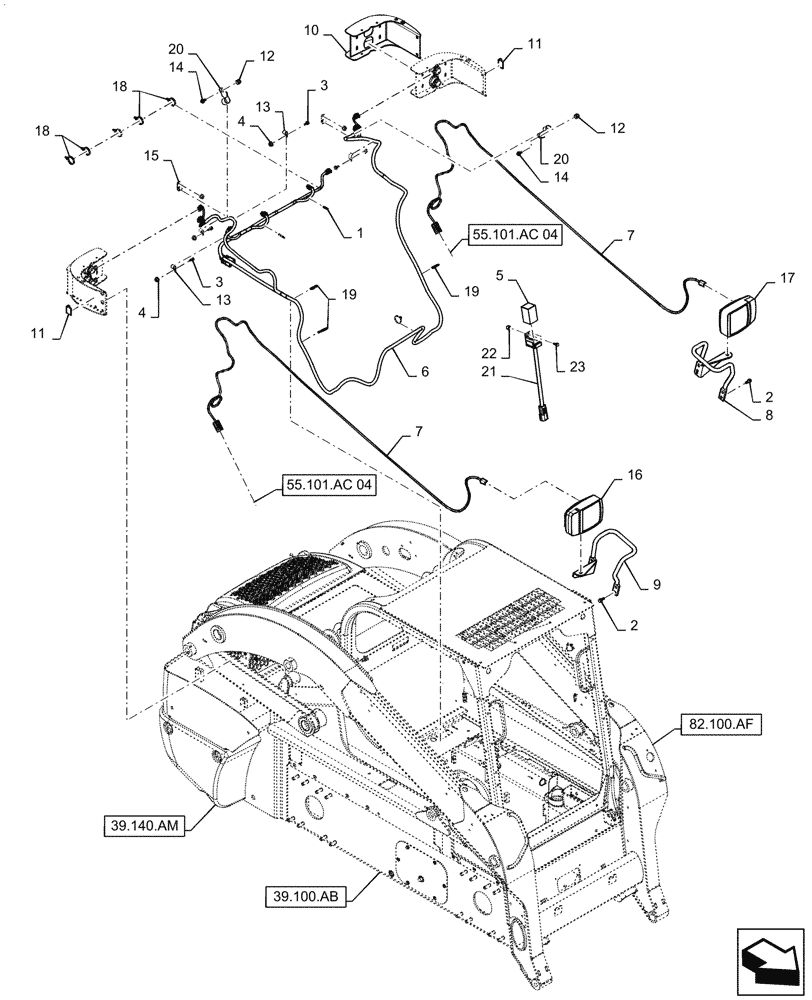

Схема запчастей Case TR340 - (55.404.CY) - EU ROAD LIGHTS (55) - ELECTRICAL SYSTEMS
39.100.ab
11
18
19
21
16
2
13
6
15
12
8
4
10
13
2
20
3
17
14
12
7
9
3
20
23
1
7
11
19
5
22
18
14
4
55.101.ac 04
55.101.ac 04
39.140.am
82.100.af

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

2шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

5

9821783

FLASHER UNIT

Relay

1шт.

6

47820998

WIRE HARNESS

Rear Road Jumper

1шт.

7

84262451

WIRE HARNESS

Boom

2шт.

8

84306583

BRACKET

LH, Light

1шт.

9

84306585

BRACKET

RH, Light

1шт.

10

84384439

REVERSING LAMP ASSY

Work

1шт.

11

84416164

FOAM INSULATION

Upper Chassis

2шт.

12

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

13

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

6шт.

14

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

15

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

16

87572859

LAMP

RH, Combination

1шт.

17

87572860

LAMP

LH, Combination

1шт.

18

87668737

CABLE TIE,203.2mm L, Nylon, Black

Nylon

7шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

20

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

2шт.

21

47972152

JUMPER

Wire Harness, Flasher

1шт.

22

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

23

86639263

BOLT,Hex, M5, Cl 8

1шт.

Выбрано товаров: 23
