Запчасти Case TR340 (55.302.AI) - BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS

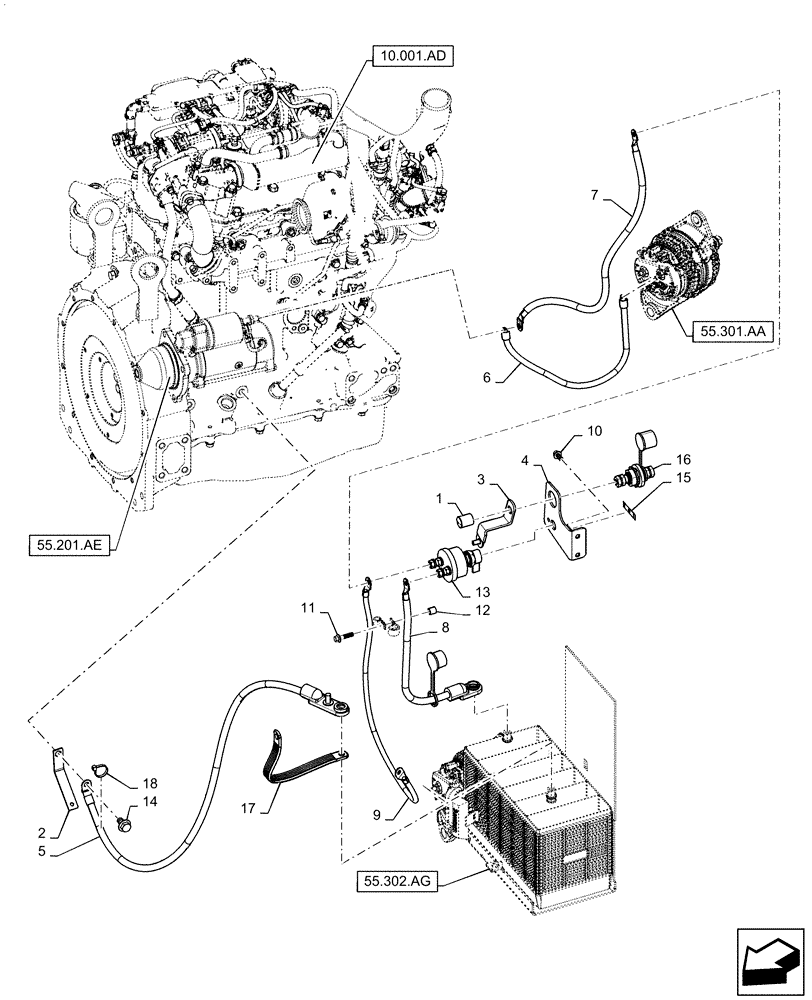

Схема запчастей Case TR340 - (55.302.AI) - BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS
10.001.ad
14
4
9
3
5
1
13
6
16
18
7
15
17
12
2
8
11
10
55.301.aa
55.302.ag
55.201.ae

Артикул

Название

Примечание

Количество

1

47455442

CAP,19.5mm ID x 22.35mm OD x 25.4mm L

Terminal Insulator

1шт.

2

47643801

ANGLE

Negative Cable Retention Battery Disconnect

1шт.

3

47662616

BAR

Battery Disconnect

1шт.

4

47664079

ANGLE

Switch Mounting

1шт.

5

47754638

NEG BATTERY CABLE,1018mm L

1018mm L, Negative Battery Terminal to Engine Ground

1шт.

6

47776508

CABLE,442.5mm L

422.5mm L, Alternator to Starter

1шт.

7

47792481

CABLE

700mm L, Disconnect Switch to Starter

1шт.

8

47792482

CABLE

417mm L, Battery Positive Terminal to Disconnect Switch

1шт.

9

47792483

CABLE

765mm L, Disconnect Switch to Fuse

1шт.

10

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

11

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

1шт.

12

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.

13

87458467

ROTARY SWITCH

Master Battery Disconnect

1шт.

14

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

15

176332A1

DECAL

Battery Disconnect

1шт.

16

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Remote Positive Jump Start

1шт.

17

D140369

GROUND STRAP,260mm L

260mm L, Negative Battery Terminal to Ground Block

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

Выбрано товаров: 18
