Запчасти Case TR340 (50.100.AC[01]) - HEATING SYSTEM (50) - CAB CLIMATE CONTROL

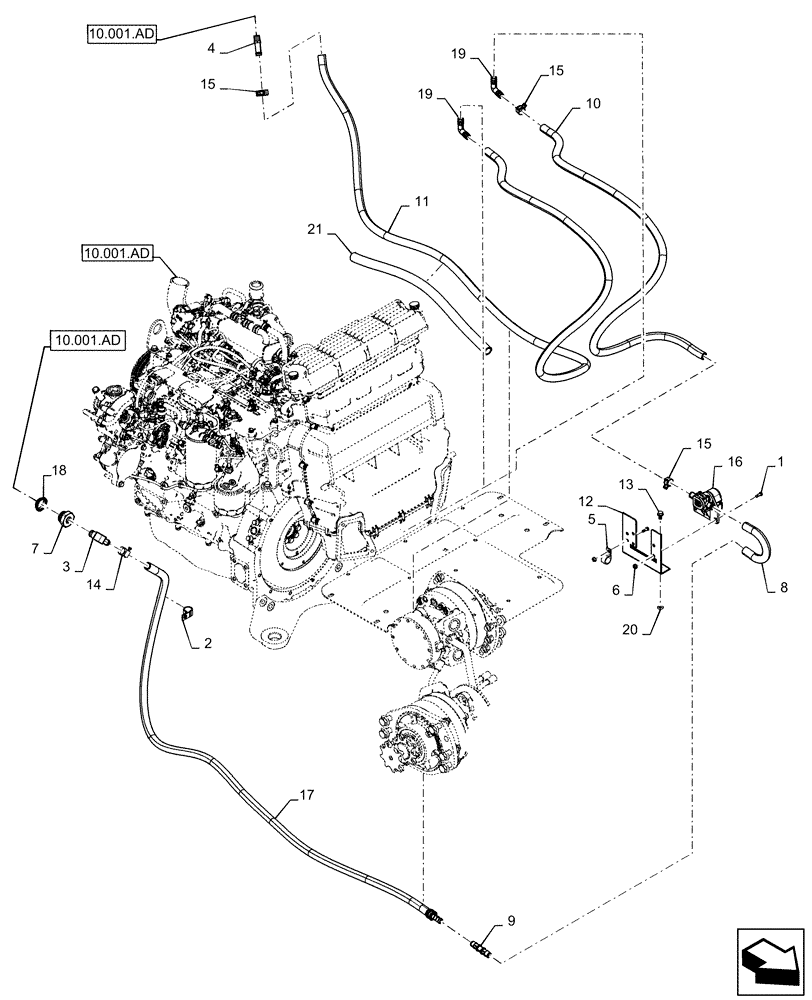

Схема запчастей Case TR340 - (50.100.AC[01]) - HEATING SYSTEM (50) - CAB CLIMATE CONTROL
10.001.ad
15
15
1
4
21
12
7
9
17
13
10
19
3
20
14
11
16
2
18
19
5
6
8
15
10.001.ad
10.001.ad

Артикул

Название

Примечание

Количество

1

120100

BOLT,M6 x 20mm, Cl 8.8

5шт.

2

86637995

CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

629781

FITTING,90 Degree, 5/8" Hose x 1/2" NPTF Beaded

1шт.

4

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

5

700514

CLAMP,3.8mm, Coat, M8 Bolt

Cable

1шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

7

47610130

FITTING,M35 x 1.5, 1/2" - 14 NPTF

Heater Hose

1шт.

8

47627999

HEATER HOSE,15.5mm ID, Formed

15.5mm ID, Formed

1шт.

9

47707866

FITTING,5/8” Hose Barb Union

5/8" Union

1шт.

10

84357678

HOSE,15.5mm ID x 1635mm L

Heater Supply, Guarded

1шт.

11

84360991

HOSE ASSY.,15.5mm ID x 3124mm L

3124mm L, Heater Return, Guarded

1шт.

12

84559122

BRACKET

Water Valve and Dryer

1шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

14

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

15

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

9шт.

16

87520839

VALVE

Water Assy

1шт.

17

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

2180mm L

1шт.

18

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

Only if Gasket is Needed

1шт.

Remove plug from cylinder head. Reuse Gasket(if possible). Remove from plug and install on fitting. Torque to 35 - 45 Nm (25.8 - 33.2 FT LB.)

1шт.

19

127083A1

ELBOW,16mm OD x 17mm OD Bead

Heater Hose

2шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

21

87441006

TUBE,4.6mm ID x 1350mm L

Guard Hose

1шт.

Выбрано товаров: 22
