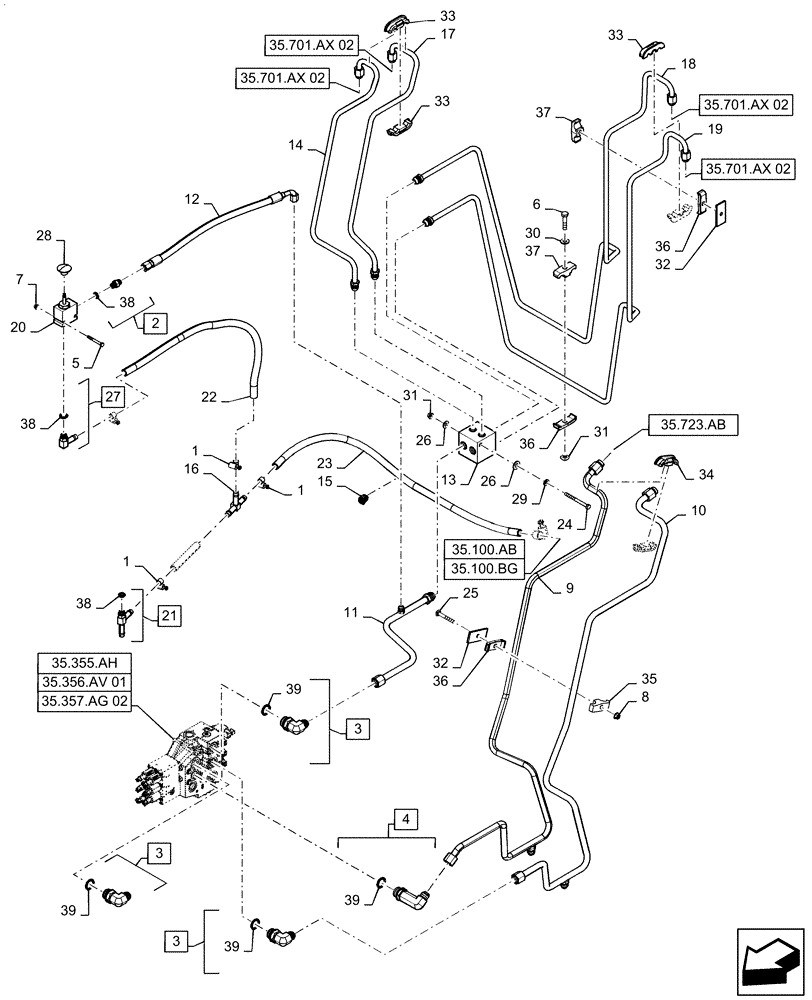

Запчасти Case TR340 (35.701.AX[01]) - LOADER VALVE LINES (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

5шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 38

1шт.

3

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 39

3шт.

4

47647779

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 39

1шт.

5

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

6

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

9

47647452

TUBE

15.9mm OD, Tube Assy, Loader to RH Arm

1шт.

10

47398553

TUBE

15.9mm OD, Tube, Loader Valve to RH Arm

1шт.

11

84181021

RIGID TUBE

Lift, Valve to Manifold

1шт.

12

84201224

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

Override

1шт.

13

84258823

HYDRAULIC MANIFOLD

Block

1шт.

14

84258884

RIGID TUBE

12.7mm OD, Lower, Manifold to RH Arm

1шт.

15

84259663

CABLE TIE,228.6mm L, Nylon, Black

Polyamide 6.6

2шт.

16

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

17

84259727

RIGID TUBE

12.7mm OD, Lift, Manifold to RH Arm

1шт.

18

84259729

RIGID TUBE

12.7mm OD, Lift, Manifold to LH Arm

1шт.

19

84259731

RIGID TUBE

12.7mm OD, Lower, Manifold to LH Arm

1шт.

20

84294239

VALVE

Boom Override

1шт.

21

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

Incl 38, Years: -19-NOV-15

1шт.

21

84187294

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

Incl 38, Start Year: 20-NOV-15

1шт.

22

84299733

HOSE,12.7mm ID x 660mm L

Override to EH Aux Drain

1шт.

23

84299735

HOSE,12.7mm ID x 915mm L

EH Aux Drain to Drain Manifold

1шт.

24

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

25

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

2шт.

26

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

27

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 38

1шт.

28

87522292

KNOB

38.4mm OD, Override Valve

1шт.

29

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

30

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

31

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

32

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

3шт.

33

376523A2

SUPPORT,1/2"

4шт.

34

376524A2

SUPPORT,5/8"

2шт.

35

D120613

CLAMP,20mm ID

2шт.

36

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

4шт.

37

D120679

CLAMP,Tube, 1/2"

2шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

39

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.
