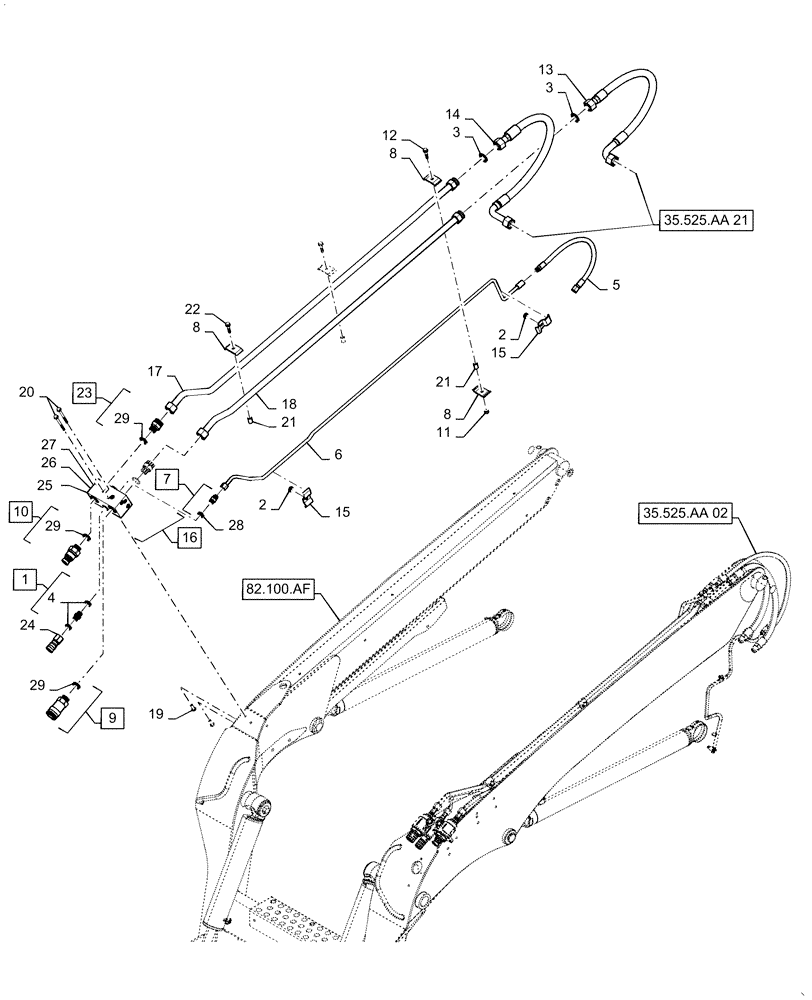

Запчасти Case TR340 (35.525.AA[22]) - DUAL AUXILIARY HYDRAULIC, BOOM SECTION (35) - HYDRAULIC SYSTEMS

1

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

Incl 4

1шт.

2

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

5

47587761

HOSE,10mm ID x 600mm L

Case Drain Enhanced High Flow

1шт.

6

47587763

TUBE

12.7mm OD, Enhanced High Flow Case Drain Arm

1шт.

7

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 28

1шт.

8

84254045

CLAMP,66mm L

66mm L, Tube

4шт.

9

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Incl 29

1шт.

10

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Incl 29

1шт.

11

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

12

84331287

SCREW,HWH, 3/8" - 16 x 3"

1шт.

13

84343229

HYDRAULIC HOSE,19.05mm ID x 933mm L, SAE 100R13

Enhanced High Flow Aux Arm

1шт.

14

84343230

HYDRAULIC HOSE,19.05mm ID x 913mm L, SAE 100R13

Enhanced High Flow Aux Arm

1шт.

15

84356597

CLAMP

79.1mm L, Butterfly Tube

2шт.

16

84486899

HYDRAULIC VALVE

Flushing Incl 25 - 27

1шт.

17

84489330

HYD TUBE

25.4mm OD, Enhanced High Flow Aux Arm

1шт.

18

84489333

HYD TUBE

25.4mm OD, Enhanced High Flow Aux Arm

1шт.

19

84580760

RIVET,Flng, 14mm OD x 21.5mm L

2шт.

20

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

21

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

3шт.

22

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

23

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 29

2шт.

24

385357A1

COUPLING

Quick, Female

1шт.

25

84490070

CHECK VALVE

Flushing

1шт.

26

84525515

ORIFICE

Disc 0.082"

1шт.

27

84490073

CONTROL VALVE

Cartridge, Hot Oil Shuttle

1шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.
