Запчасти Case TR340 (35.525.AA[21]) - DUAL AUXILIARY HYDRAULIC, CHASSIS MOUNTED (35) - HYDRAULIC SYSTEMS

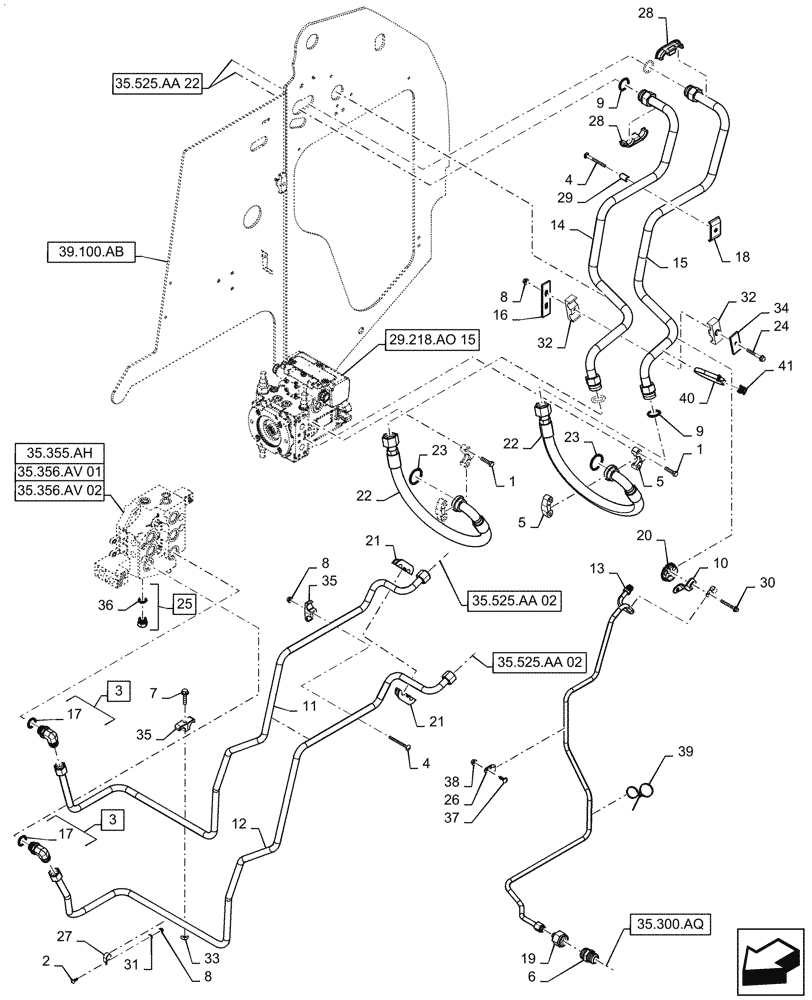

Схема запчастей Case TR340 - (35.525.AA[21]) - DUAL AUXILIARY HYDRAULIC, CHASSIS MOUNTED (35) - HYDRAULIC SYSTEMS
35.525.aa 22
8
23
17
22
25
10
36
15
28
3
4
2
26
24
38
40
9
41
30
22
16
5
3
19
18
12
11
32
21
34
1
8
7
13
23
29
21
37
1
8
17
31
14
39
20
33
35
9
32
28
35
29.218.ao 15
6
27
4
5
35.356.av 01
35.356.av 02
35.525.aa 02
35.525.aa 02
35.300.aq
35.355.ah
39.100.ab

Артикул

Название

Примечание

Количество

1

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

2

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

3

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 17

2шт.

4

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

2шт.

5

727077

HALF-FLANGE

Clamp, 0.75" ID

4шт.

6

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1шт.

7

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

10

47833424

BRACKET

Enhanced High Flow Case Drain Clamp

1шт.

11

47612541

TUBE

19.1mm OD x 2554.0mm L, Aux, Loader Valve to Lift Arm, Left

1шт.

12

47612544

TUBE

19.1mm OD x 2523.4mm L, Aux, Loader Valve to Lift Arm, Left

1шт.

13

47649483

TUBE

12.7mm OD, Enhanced High Flow Case Drain Chassis, Years: -17-NOV-16

1шт.

13

48010264

HYD TUBE

12.7mm OD, Enhanced High Flow Case Drain Chassis, Start Year: 18-NOV-16

1шт.

14

47773386

HYD TUBE

25.4mm OD x 1244.5mm L, Enhanced High Flow Aux Tower, Right

1шт.

15

47773388

HYD TUBE

25.4mm OD x 1278.2mm L, Enhanced High Flow Aux Tower, Right

1шт.

16

47773895

BRACKET

Enhanced High Flow Aux Clamp

1шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

18

84254045

CLAMP,66mm L

66mm L, Tube

1шт.

19

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

1шт.

20

84322490

GROMMET

57mm OD, Hydraulic Tube, SAE -8

1шт.

21

84362112

SUPPORT

Hydraulic Tube

2шт.

22

84523266

HOSE ASSY.,19.05mm ID x 745mm L, SAE 100R13

Enhanced High Flow Aux Pump

2шт.

23

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

24

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

25

86512512

PLUG,7/8" - 14 ORB

Incl 36

1шт.

26

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

27

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

28

87017999

SUPPORT

Hydraulic Tube

2шт.

29

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

30

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

32

1546028C1

CLAMP,25.4mm ID x 82mm L

Hydraulic Tube

1шт.

33

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

34

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

35

D124301

CLAMP,3/4" ID

2шт.

36

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

1шт.

38

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

39

82012869

CABLE TIE,300mm L, Nylon, Black

1шт.

40

84266050

CABLE TIE,384mm L, Polyamide

2шт.

41

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

Выбрано товаров: 42
