Запчасти Case TR340 (35.525.AA[11]) - AUXILIARY HYDRAULIC, HIGH FLOW, CHASSIS MOUNTED (35) - HYDRAULIC SYSTEMS

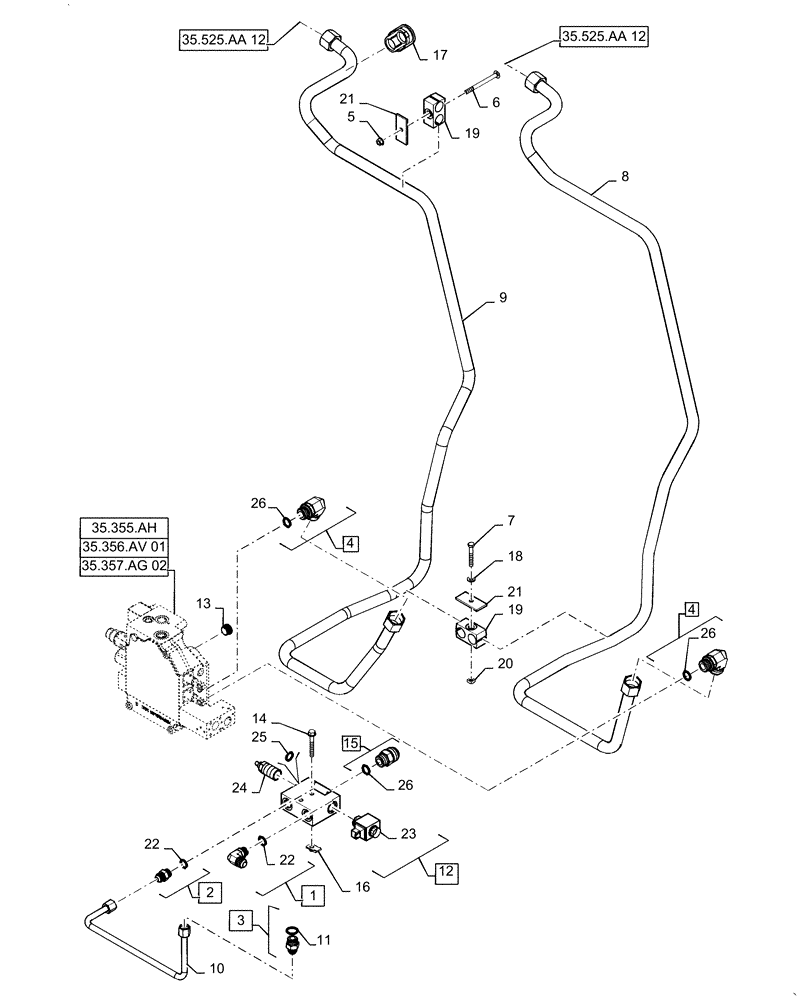

Схема запчастей Case TR340 - (35.525.AA[11]) - AUXILIARY HYDRAULIC, HIGH FLOW, CHASSIS MOUNTED (35) - HYDRAULIC SYSTEMS
35.355.ah
22
23
18
20
13
25
12
26
19
14
4
1
3
7
26
21
15
6
16
9
10
19
24
17
4
5
11
22
21
26
8
2
35.357.ag 02
35.356.av 01
35.525.aa 12
35.525.aa 12

Артикул

Название

Примечание

Количество

1

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 22

1шт.

2

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 22

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 11

1шт.

4

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 26

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

9811147

CARRIAGE BOLT,Sq Nk, M8 x 100mm, Cl 8.8

1шт.

7

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

8

47612536

TUBE

25.4mm OD x 2598.0mm L, Aux High Flow, Loader Valve to Lift Arm

1шт.

9

47612538

TUBE

25.4mm OD x 2575.1mm L, Aux High Flow, Loader Valve to Lift Arm

1шт.

10

84186155

TUBE

12.7mm OD, High Flow Valve to Loader Valve

1шт.

11

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

84256405

HYDRAULIC VALVE

High Flow Combiner, Incl 23 - 25

1шт.

13

84373460

PLUG,23.8mm OD

Load Check

1шт.

14

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

15

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 26

1шт.

16

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

17

87017999

SUPPORT

Hydraulic Tube

2шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

19

225529A1

CLAMP,Dual, 25.4mm ID

Tube

2шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

21

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

23

84390144

COIL

High Flow Combiner

1шт.

24

84304583

POPPET

Valve, High Flow Combiner 2W2P

1шт.

25

84304585

SEAL KIT

High Flow Combiner, Services 12

1шт.

26

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

Выбрано товаров: 26
