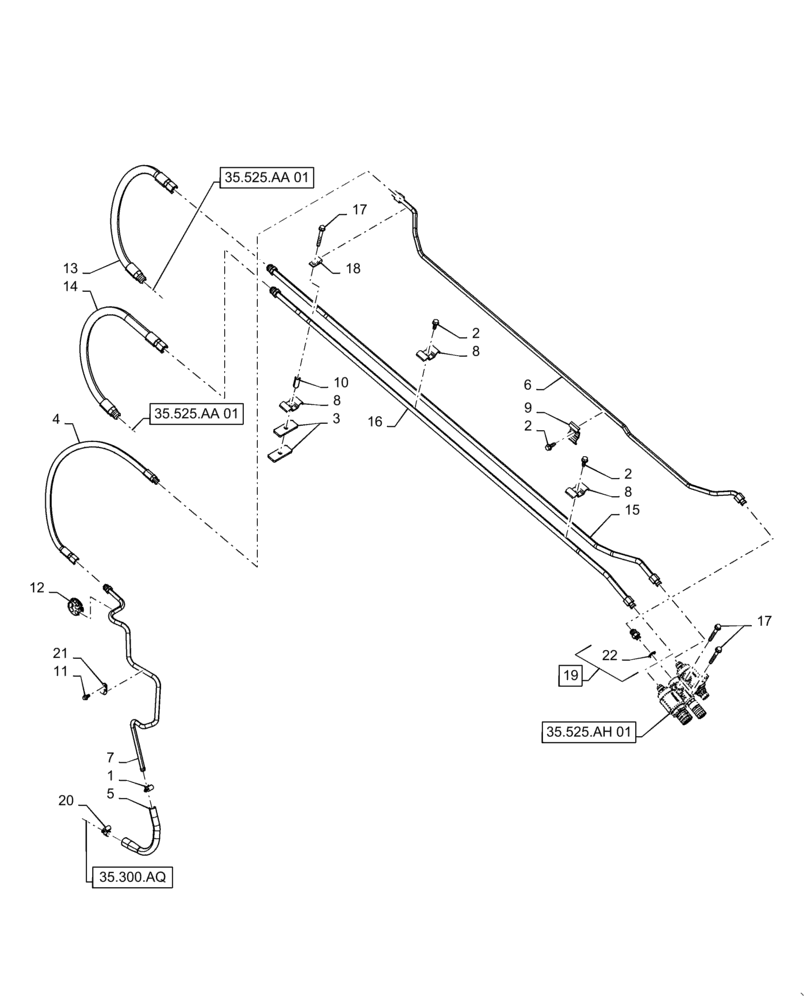

Запчасти Case TR340 (35.525.AA[02]) - AUXILIARY HYDRAULIC, STANDARD , BOOM SECTION C.U.P. (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

1шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

3

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

82mm L

2шт.

4

47566725

HOSE,10mm ID x 890mm L, SAE 100R1

890mm L, Case Drain

1шт.

5

47606593

TUBE

Case Drain to Tank

1шт.

6

47612725

TUBE

12.7mm OD x 1747.1mm L, Case Drain

1шт.

7

47645288

TUBE

12.7mm OD x 914.7mm L, Case Drain

1шт.

8

84252828

CLAMP,65.2mm L

65.2mm L, Butterfly Tube

3шт.

9

84254056

HOSE CLAMP,69.2mm L

67.1mm L, Butterfly Tube

2шт.

10

84265307

TUBE SPACER,10.3mm ID x 15.9mm OD x 36.5mm L

1шт.

11

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

1шт.

12

84322490

GROMMET

Hydraulic Tube SAE -8

1шт.

13

84322558

FLEXIBLE HOSE,15.88mm ID x 698mm L, SAE 100R17

1шт.

14

84322561

FLEXIBLE HOSE,15.88mm ID x 773mm L, SAE 100R17

1шт.

15

84322562

HYD TUBE

15.88mm OD x 1735.7mm L

1шт.

16

84322567

HYD TUBE

15.88mm OD x 1678.9mm L

1шт.

17

84331287

SCREW,HWH, 3/8" - 16 x 3"

3шт.

18

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 22

1шт.

20

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

21

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
