Запчасти Case TR320 (35.701.02) - LOADER VALVE PLUMBING (SR250,TR320) (35) - HYDRAULIC SYSTEMS

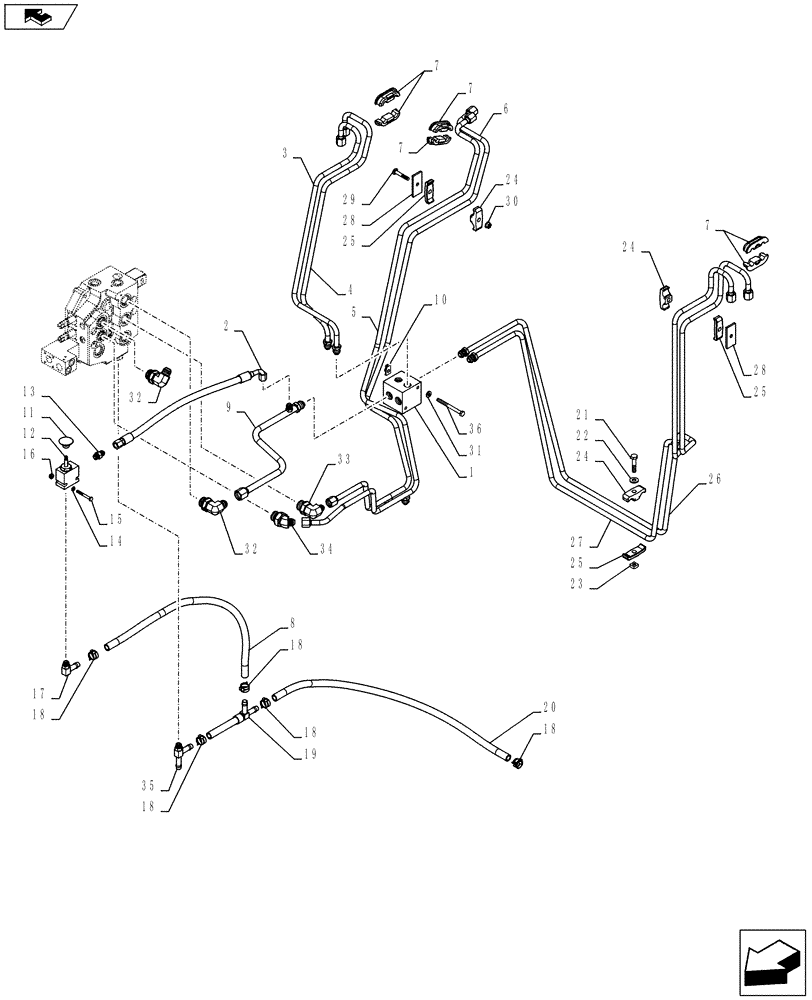

Схема запчастей Case TR320 - (35.701.02) - LOADER VALVE PLUMBING (SR250,TR320) (35) - HYDRAULIC SYSTEMS
28
20
34
16
7
32
21
24
28
7
2
18
9
3
17
7
30
33
4
7
27
22
18
18
25
32
25
13
1
15
14
26
12
18
25
1
35
36
23
8
10
18
1
29
5
24
home
6
19
31
24

Артикул

Название

Примечание

Количество

1

84258823

HYDRAULIC MANIFOLD

1шт.

2

84201224

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

Override

1шт.

3

84258884

RIGID TUBE

Lower, Manifold to Rt Arm

1шт.

4

84259727

RIGID TUBE

Lift, Manifold to Rt Arm

1шт.

5

84385536

HYD TUBE

Tip, Loader Valve to Rt Arm

1шт.

6

84385539

HYD TUBE

Tip, Loader Valve to Rt Arm

1шт.

7

376523A2

SUPPORT,1/2"

Hyd Tube

6шт.

8

84299733

HOSE,12.7mm ID x 660mm L

Override to EH Aux Drain

1шт.

9

84181021

RIGID TUBE

Lift, Valve to Manifold

1шт.

10

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

11

87522292

KNOB

Knob, Override Valve

1шт.

12

84294239

VALVE

1шт.

13

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

17

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

1шт.

18

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

5шт.

19

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

20

84299735

HOSE,12.7mm ID x 915mm L

1шт.

21

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

22

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

23

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

24

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

4шт.

25

D120679

CLAMP,Tube, 1/2"

4шт.

26

84259729

RIGID TUBE

Lift, Manifld to Lft Arm

1шт.

27

84259731

RIGID TUBE

Lower, Manifold to Lft Arm

1шт.

28

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

3шт.

29

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

30

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

32

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

2шт.

33

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

34

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

1шт.

35

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

1шт.

36

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

Выбрано товаров: 36
