Запчасти Case TR320 (35.701.01) - LOADER HYDRAULIC LIFT (SR250,TR320 (35) - HYDRAULIC SYSTEMS

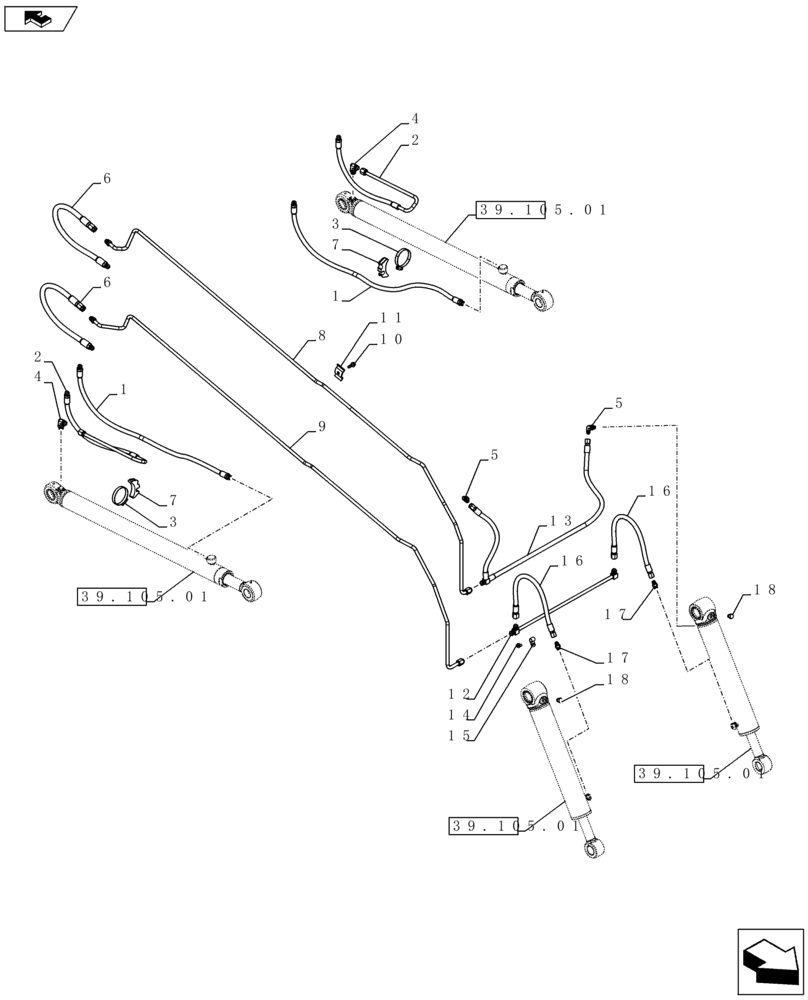

Схема запчастей Case TR320 - (35.701.01) - LOADER HYDRAULIC LIFT (SR250,TR320 (35) - HYDRAULIC SYSTEMS
1
10
18
2
14
16
13
9
home
39.105.01
4
3
2
12
6
39.105.01
15
4
1
16
6
7
8
7
17
18
5
11
17
39.105.01
5
3

Артикул

Название

Примечание

Количество

1

84255974

HOSE,9.53mm ID x 1105mm L, SAE 100R17

Lift Cylinder Rod, Incl O-Ring 19

2шт.

2

84255975

TUBE

Lift Cylinder Base

2шт.

3

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 19

2шт.

5

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 19

1шт.

6

84322590

FLEXIBLE HOSE,12.7mm ID x 661mm L, SAE 100R16

Assembly, Tip Cylinder

2шт.

7

84255986

HOSE CLAMP

Cylinder Saddle

2шт.

8

84352352

HYD TUBE

Assembly, Tip Cylinder

1шт.

9

84352341

HYD TUBE

Assembly, Tip Cylinder

1шт.

10

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

11

86501706

CLAMP

Double Tube

4шт.

12

84346785

HYD TUBE

Tip Crossover

1шт.

13

84346682

HOSE ASSY.,9.53mm ID x 1457mm L, SAE 100R17

Tip Cylinder Base

1шт.

14

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

15

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

16

84346755

HOSE ASSY.,9.53mm ID x 568mm L, SAE 100R16

Tip Cylinder Rod

2шт.

17

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

18

76349

PLUG,9/16" - 18 ORB

Incl 20

2шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not Illustrated

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not Illustrated

2шт.

Выбрано товаров: 20
