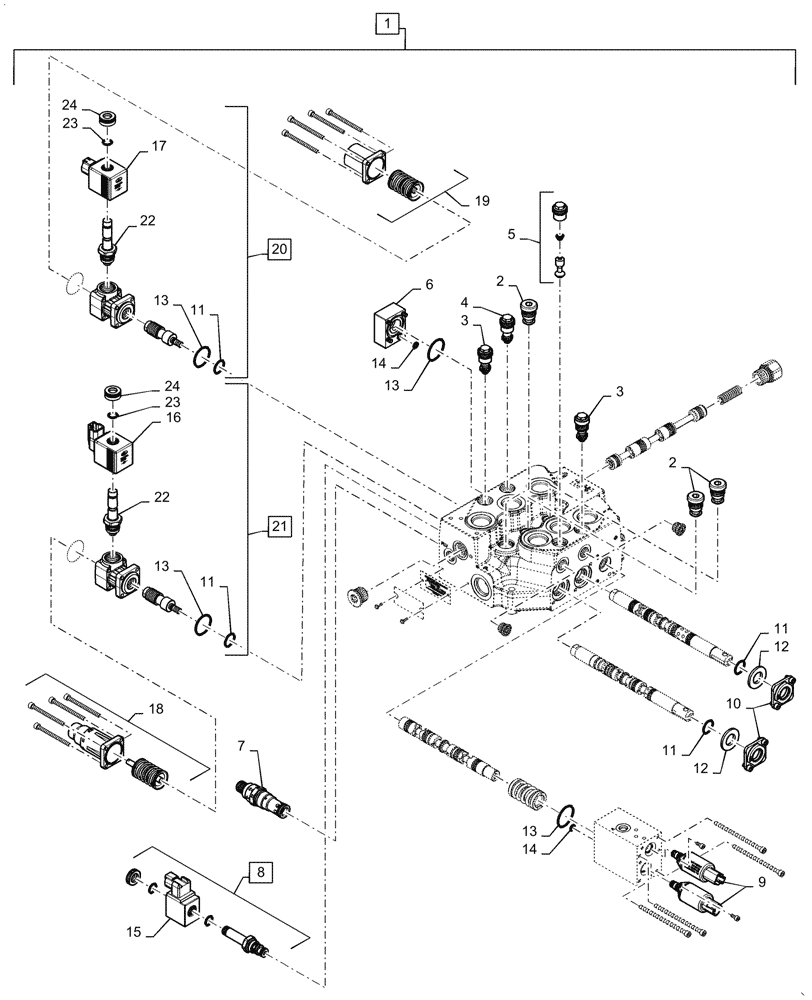

Запчасти Case TR320 (35.359.05) - CONTROL VALVE ASSY, MECHANICAL FOOT CONTROL, EH AUX (ALL CASE) (35) - HYDRAULIC SYSTEMS

1

47735214

VALVE

Mechanical Foot Control, EH Aux, Incl 2 - 24

1шт.

2

84386281

CHECK VALVE

Load

3шт.

3

84386282

VALVE PRESSURE RELIE

225 Bar, Port Relief

2шт.

4

47458153

VALVE

260 Bar, Port Relief

1шт.

5

84386285

HYDRAULIC VALVE

Anti-Cavitation

1шт.

6

84386286

CAP

EH Aux End

1шт.

7

84386287

VALVE PRESSURE RELIE

210 Bar, Main Relief

1шт.

8

84386288

HYDRAULIC VALVE

PLV Cartridge

1шт.

9

84386289

VALVE, PRESSURE CONT

Pressure Reducing

2шт.

10

84386290

KIT

Spool Wiper

3шт.

11

84386291

O-RING

Spool

4шт.

12

84386292

BACK-UP RING

Spool

4шт.

13

84386293

O-RING

EH Spool Cap

4шт.

14

84386294

O-RING

EH Passage

3шт.

15

47876130

COIL

PLV

1шт.

16

47876131

COIL

Boom Spool Lock

1шт.

17

47876134

COIL

Bucket Spool Lock

1шт.

18

47876143

KIT

Boom Spool Lock, Incl 15

1шт.

19

47876144

KIT

Bucket Spool Lock

1шт.

20

47876126

KIT

Bucket Spool Lock, Incl 11, 13, 17, 22 - 24

1шт.

21

47876127

KIT

Boom Spool Lock, Incl 11, 13, 16, 22 - 24

1шт.

22

48018727

TUBE

Spool Lock

2шт.

23

48018682

O-RING

Seal

2шт.

24

48018736

TUBE NUT

Ring

2шт.
