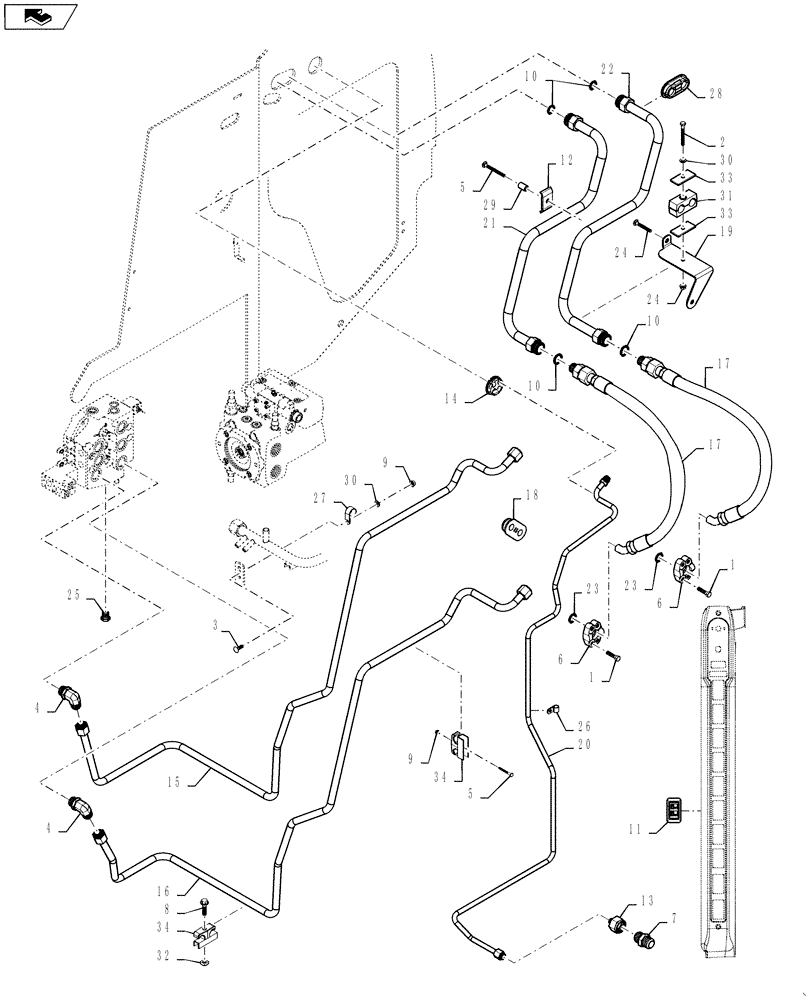

Запчасти Case TR320 (35.220.03[02]) - 2ND AUX HYD, HIGH FLOW, CHASSIS PLUMBING (SR250,TR320) (35) - HYDRAULIC SYSTEMS

1

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

2

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

3

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

4

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

5

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

M8 X 80

2шт.

6

727077

HALF-FLANGE

Clamp

4шт.

7

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1шт.

8

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

10

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

11

84251427

SWITCH

Rocker, High Flow

1шт.

12

84254045

CLAMP,66mm L

Tube

1шт.

13

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

Adapter

1шт.

14

84322490

GROMMET

Hydraulic Tube

1шт.

15

84322591

HYD TUBE

Assembly, Aux, Loader Valve To Lift Arm

1шт.

16

84322593

HYD TUBE

Assembly, Aux, Loader Valve To Lift Arm

1шт.

17

84341731

HYDRAULIC HOSE,19.05mm ID x 826mm L, SAE 100R13

Assembly, EHF Aux Pump

2шт.

18

84362112

SUPPORT

Hydraulic Tube

2шт.

19

84374764

BRACKET

Hose Clamp, Gray

1шт.

20

84385526

HYD TUBE

Assembly, EHF, Case Drain Chassis

1шт.

21

84385528

HYD TUBE

Assembly, EHF, Aux Tower

1шт.

22

84385533

HYD TUBE

Assembly, EHF, Aux Tower

1шт.

23

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

24

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

1шт.

25

86512512

PLUG,7/8" - 14 ORB

1шт.

26

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

27

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

28

87017999

SUPPORT

Hydraulic Tube

2шт.

29

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

30

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8.80 X 17.5 X 2.2

2шт.

31

1546028C1

CLAMP,25.4mm ID x 82mm L

Hydraulic Tube

1шт.

32

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

1шт.

33

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Top

2шт.

34

D124301

CLAMP,3/4" ID

Tube, 3/4 Inch

2шт.
