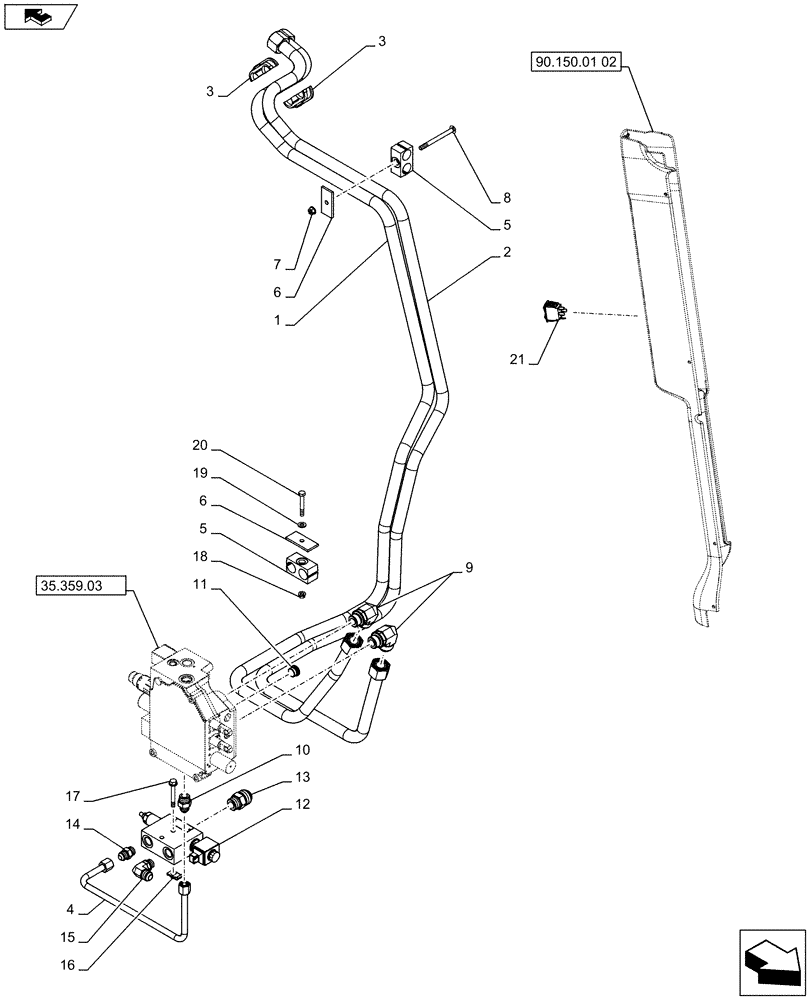

Запчасти Case TR320 (35.220.02[03]) - AUXILIARY HYDRAULIC, HIGH FLOW, CHASSIS PLUMBING (SR250,TR320) (35) - HYDRAULIC SYSTEMS

1

84323950

HYD TUBE

Assembly, Aux HF, LDR Valve to LFT Arm

1шт.

2

84322565

HYD TUBE

Assembly, Aux HF, LDR Valve to LFT Arm

1шт.

3

87017999

SUPPORT

Hyd Tube

2шт.

4

84186155

TUBE

Assembly, HF, Valve to LDR Valve, Years: -05-JAN-16

1шт.

4

47900681

HYD TUBE

High Flow Valve to Loader Valve, Start Year: 06-JAN-15

1шт.

5

225529A1

CLAMP,Dual, 25.4mm ID

Clamp Tube

2шт.

6

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

8

9811147

CARRIAGE BOLT,Sq Nk, M8 x 100mm, Cl 8.8

M8 X 100, SSNK CL 8.8 ZND

1шт.

9

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

10

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

11

84373460

PLUG,23.8mm OD

Load Check

1шт.

12

84256405

HYDRAULIC VALVE

HF Combiner

1шт.

13

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

14

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

15

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

16

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

17

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

18

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

1шт.

19

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8, 8.80 X 17.5 X 2.2 HTS

1шт.

20

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

21

84251427

SWITCH

Rocker, High Flow

1шт.

22

84304583

POPPET

High Flow Combiner (Not Shown)

1шт.

23

84304585

SEAL KIT

High Flow Combiner (Not Shown)

1шт.

24

84390144

COIL

High Flow Combiner (Not Shown)

1шт.
