Запчасти Case TR320 (29.212.02) - TRAVEL SPEED, E-H (02-OCT-2016 & PRIOR) (29) - HYDROSTATIC DRIVE

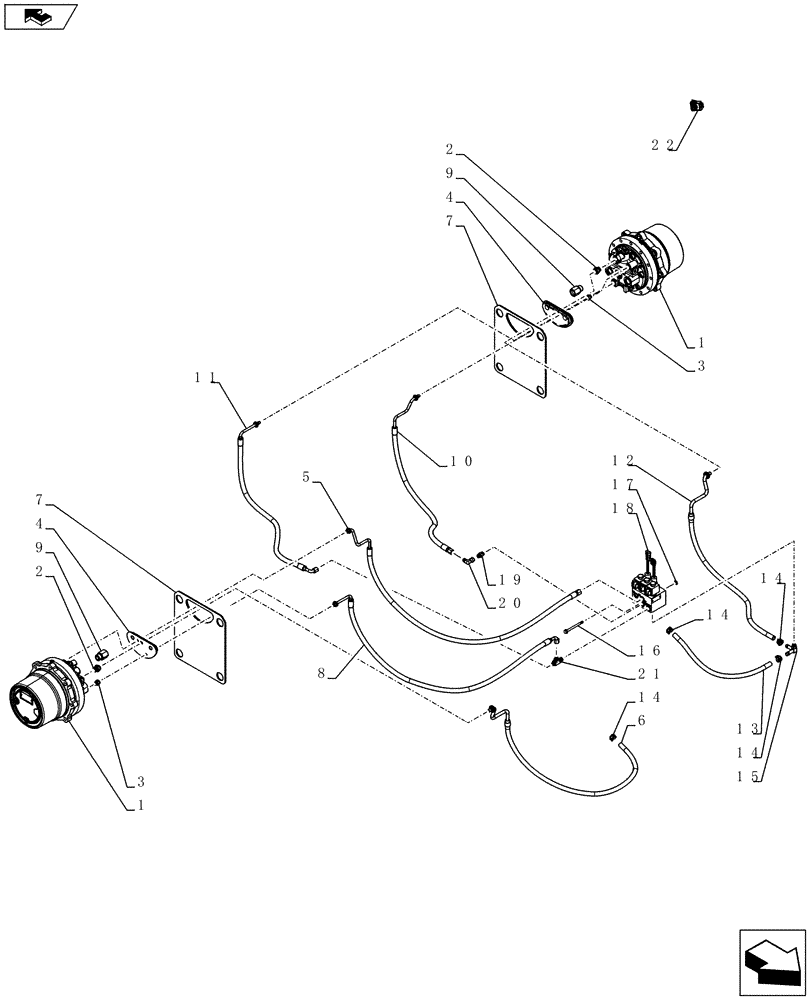

Схема запчастей Case TR320 - (29.212.02) - TRAVEL SPEED, E-H (02-OCT-2016 & PRIOR) (29) - HYDROSTATIC DRIVE
9
1
11
2
5
16
14
4
18
14
home
7
2
20
6
12
14
14
8
22
17
9
7
1
3
15
13
19
3
10
21
4

Артикул

Название

Примечание

Количество

1

87588897

MOTOR-PUMP,50.9 CC

2-Spd Motor, Track Drive

2шт.

1

87588897R

REMAN-HYD MOTOR

2шт.

1

87588897C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

84277065

ADAPTER,3/4" - 16 ORB x -8 Fem Quick Lock

8FQLL-8MB

2шт.

3

84277064

ADAPTER,9/16" - 18 ORB x -6 Fem Quick Lock

6FQLL-6MB

4шт.

4

84331670

GROMMET

Chassis, Years: -05-JAN-16

2шт.

4

47893401

GROMMET

Chasis, Start Year: 06-JAN-16

2шт.

5

84280449

RIGID TUBE

Assy, Brake RH

1шт.

6

84280444

RIGID TUBE

Assy, Case Drain RH, Must Order Ref. 9 Adapter

1шт.

7

84331874

PLATE

Grommet, Gray

2шт.

8

84280452

FLEXIBLE HOSE,9.53mm ID x 1245mm L, SAE 100R1

Assy, Two Speed RH, Must Order Ref. 3 Adapter

1шт.

9

84277066

ADAPTER,- 12 Fem Quick Lock HP x 1-1/16" - 12, - A3512 ORB

Female, HP Quick Lok, Years: -05-JAN-16

4шт.

9

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

, Start Year: 06-JAN-16

4шт.

10

84280448

RIGID TUBE

Assy, Brake LH

1шт.

11

84280451

FLEXIBLE HOSE,9.53mm ID x 1045mm L, SAE 100R1

Assy, Two Speed LH, Must Order Ref. 2 Adapter

1шт.

12

84280443

HYD TUBE

Assy, Case Drain LH, Must Order Ref. 9 Adapter

1шт.

13

84257173

HOSE,12.7mm ID x 570mm L

Brake Drain

1шт.

14

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.

15

84187294

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

Fitting

1шт.

16

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

Flange, 8.8, M8 x 100

2шт.

17

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square, M8-1.25

2шт.

18

84256534

HYDRAULIC VALVE

EH Track Brake Valve, See Ref. 23-29

1шт.

19

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

20

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

21

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

22

84388282

INDICATOR

High Speed Indicator

2шт.

23

84311814

PRESSURE SWITCH

Brake Pressure, Valve (Not Shown)

1шт.

24

84311813

PRESSURE SWITCH

Charge Pressure, Valve (Not Shown)

1шт.

25

84390140

COIL

Interlock (Not Shown)

1шт.

26

84390142

COIL

2 Speed (Not Shown)

1шт.

27

84311809

SEAL KIT

Brake, Interlock, 2 Speed Seal (Not Shown)

3шт.

28

84311808

HYDRAULIC VALVE

Brake, Interlock, 2 Speed 3W2P Spool (Not Shown)

3шт.

29

84390141

COIL

Brake (Not Shown)

1шт.

Выбрано товаров: 33
