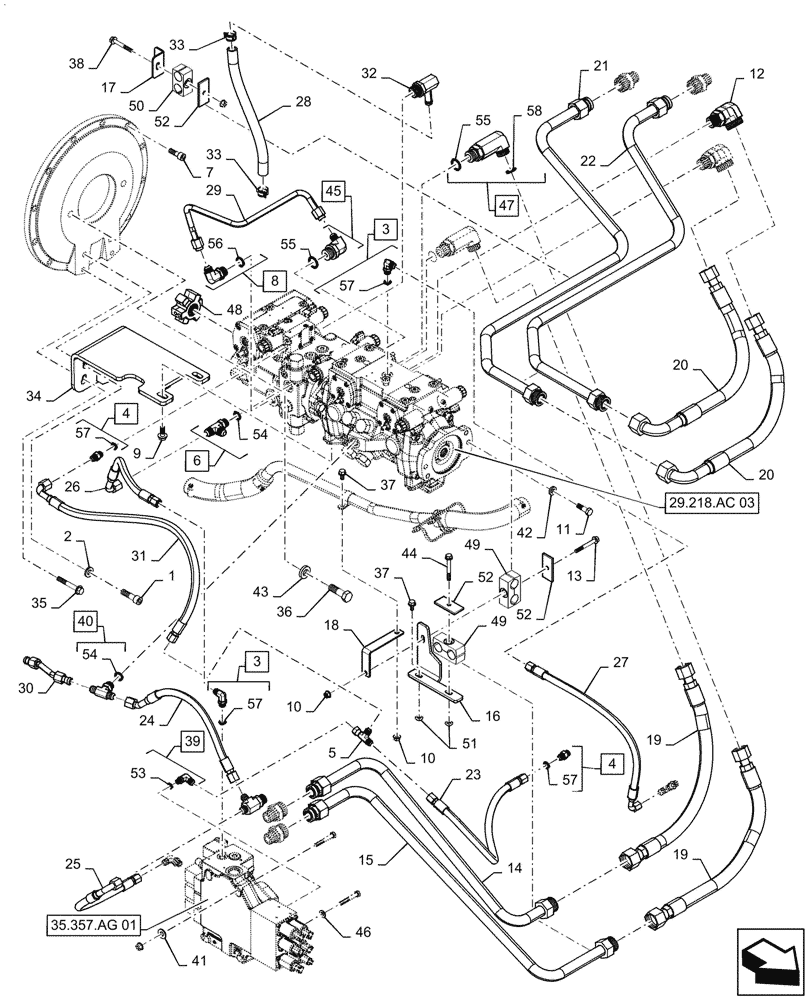

Запчасти Case TR320 (29.204.AB[05]) - HYDROSTATIC PUMP, DRIVE LINES, EHF CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE

1

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

2шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 57

3шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 57

3шт.

5

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

6

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 54

1шт.

7

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

10шт.

8

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 56

1шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

11

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

12

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

3шт.

13

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

14

47886077

HYD TUBE

RH CTL, Drive Motor

1шт.

15

47886097

HYD TUBE

RH CTL, Drive Motor

1шт.

16

47892805

BRACKET

Clamp Mounting

1шт.

17

47895194

BRACKET

Clamp Mounting

1шт.

18

47899210

BRACKET

Clamp Mounting

1шт.

19

47926578

HOSE,19mm ID x 565mm L, SAE100R19

Loop

2шт.

20

47926590

HOSE,19mm ID x 575mm L, SAE 100R19

Loop

2шт.

21

47966488

TUBE

LH CTL, Drive Motor

1шт.

22

47966491

TUBE

LH CTL, Drive Motor

1шт.

23

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

EH Control to Brake

1шт.

24

84356607

HYDRAULIC HOSE,9.53mm ID x 364mm L, SAE 100R17

Charge Suppply

1шт.

25

84356613

HYDRAULIC HOSE,9.53mm ID x 552mm L, SAE 100R17

Charge Supply Brake

1шт.

26

84356615

HYDRAULIC HOSE,9.53mm ID x 402mm L, SAE 100R17

Charge Supply LDR Valve

1шт.

27

84356618

HYDRAULIC HOSE,9.53mm ID x 592mm L, SAE 100R17

NOR Pump to Brake

1шт.

28

84356619

HYDRAULIC HOSE,15.88mm ID x 335mm L

EHF Drain

1шт.

29

84387079

HYD TUBE,12.7mm OD

EHF Pump Drain

1шт.

30

84419203

HYD TUBE,12.7mm OD

P1 to P2 Charge

1шт.

31

84419205

HOSE ASSY.,9.53mm ID x 780.8mm L, SAE 100R1

Pump to Interlock

1шт.

32

84473278

FITTING,7/8"-14 ORB x 15.88mm OD Bead x M10 x 1.0

1шт.

33

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

34

84549585

MOUNTING PLATE

Pump Support

1шт.

35

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

36

86508732

BOLT,5/8"-11 x 2.391" Cl 8

2шт.

37

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

38

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

39

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 53

1шт.

40

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 54

1шт.

41

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

42

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

43

86637955

WASHER,0.66" ID x 1.25" OD x 0.24" Thk

2шт.

44

87017615

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

45

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 55

1шт.

46

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

47

87661865

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 55, 58

2шт.

48

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

49

1546028C1

CLAMP,25.4mm ID x 82mm L

2шт.

50

225529A1

CLAMP,Dual, 25.4mm ID

1шт.

51

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

52

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

3шт.

53

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

54

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

55

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

56

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

57

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

58

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
