Запчасти Case TR320 (29.204.AB[05]) - HYDROSTATIC PUMP, DRIVE LINES, EHF CONTROLS (19-NOV-2015 & PRIOR) (29) - HYDROSTATIC DRIVE

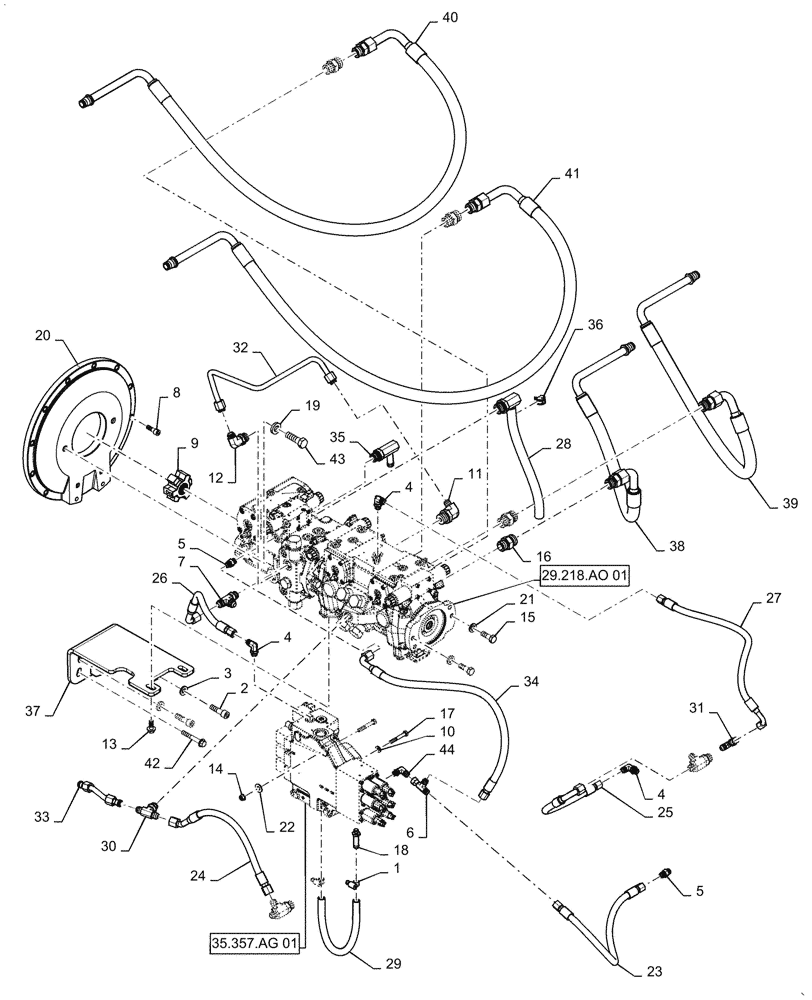

Схема запчастей Case TR320 - (29.204.AB[05]) - HYDROSTATIC PUMP, DRIVE LINES, EHF CONTROLS (19-NOV-2015 & PRIOR) (29) - HYDROSTATIC DRIVE
29.218.ao 01
42
20
14
1
17
10
35
36
8
7
6
27
5
33
13
3
12
5
24
29
25
16
21
39
18
40
32
38
34
43
4
15
44
11
37
4
28
31
2
23
30
26
9
41
22
4
19
35.357.ag 01

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

2шт.

3

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

6

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

7

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

8

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

10шт.

9

87711337

COUPLING,19T, 1-1/8" ID

1шт.

10

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

11

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

12

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

1шт.

13

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

16

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

4шт.

17

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

18

87314487

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

1шт.

19

86637955

WASHER,0.66" ID x 1.25" OD x 0.24" Thk

0.656" ID x 1.25" OD

2шт.

20

47659211

COVER

Flywheel

1шт.

21

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

22

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

23

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

EH Control to Brake

1шт.

24

84356607

HYDRAULIC HOSE,9.53mm ID x 364mm L, SAE 100R17

Charge Supply

1шт.

25

84356613

HYDRAULIC HOSE,9.53mm ID x 552mm L, SAE 100R17

Charge Supply Brake

1шт.

26

84356615

HYDRAULIC HOSE,9.53mm ID x 402mm L, SAE 100R17

Charge Supply Loader Valve

1шт.

27

84356618

HYDRAULIC HOSE,9.53mm ID x 592mm L, SAE 100R17

Pump to Brake

1шт.

28

84356619

HYDRAULIC HOSE,15.88mm ID x 335mm L

EHF Drain

1шт.

29

84373394

HOSE,12.7mm ID x 410mm L

Aux to EH Aux Drain, Years: -20-NOV-15

1шт.

29

47919061

HOSE,16mm ID x 535mm L

Aux to EH Aux Drain, Start Serial: 21-NOV-2015

1шт.

30

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

31

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

32

84387079

HYD TUBE,12.7mm OD

EHF Pump Drain

1шт.

33

84419203

HYD TUBE,12.7mm OD

P1 to P2

1шт.

34

84419205

HOSE ASSY.,9.53mm ID x 780.8mm L, SAE 100R1

EH Control to Brake

1шт.

35

84473278

FITTING,7/8"-14 ORB x 15.88mm OD Bead x M10 x 1.0

-10ORB x -10Bead x M10

1шт.

36

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

37

84549585

MOUNTING PLATE

Pump Support

1шт.

38

84560846

HOSE ASSY.,19.05mm ID x 677mm L, SAE 100R19

Loop

1шт.

39

84560847

HOSE ASSY.,19.05mm ID x 957mm L, SAE 100R19

Loop

1шт.

40

84560849

HOSE ASSY.,19.05mm ID x 1572mm L, SAE 100R19

Loop

1шт.

41

84560851

HOSE ASSY.,19.05mm ID x 1647mm L, SAE 100R19

Loop

1шт.

42

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

43

86508732

BOLT,5/8"-11 x 2.391" Cl 8

2шт.

44

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

Выбрано товаров: 45
