Запчасти Case TR320 (90.180.01[01]) - DECALS (TR320) (90) - PLATFORM, CAB, BODYWORK AND DECALS

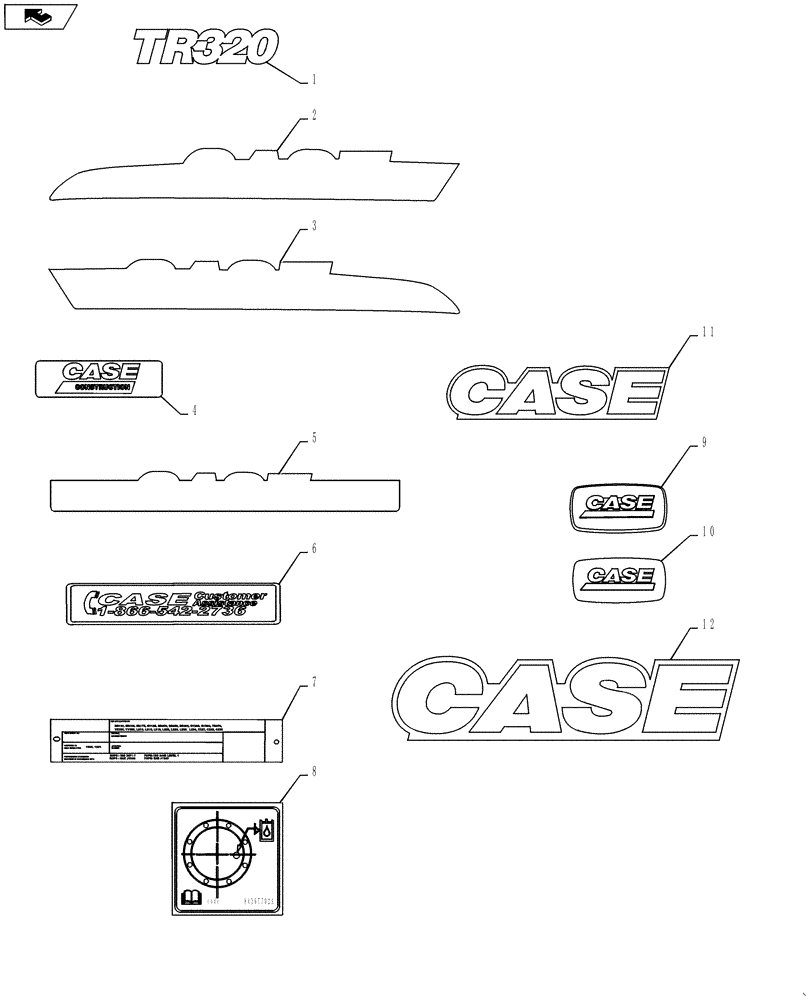

Схема запчастей Case TR320 - (90.180.01[01]) - DECALS (TR320) (90) - PLATFORM, CAB, BODYWORK AND DECALS
code
12
10
4
home
3
2
84367702a
5
6
7
1
11
8
9

Артикул

Название

Примечание

Количество

1

84312465

DECAL

TR320, Model Designation, Black, Years: -25-SEP-11

2шт.

1

84493209

DECAL

TR320, Model Designation, Silver/Fading, Years: 26-SEP-11-03-OCT-16

2шт.

1

47919034

DECAL

TR320, Model Designation, Start Year: 04-OCT-16

2шт.

2

84312460

DECAL

LH, Med/Large, Radial Stripe

1шт.

3

84312462

DECAL

RH, Med/Large, Radial Stripe

1шт.

4

84385194

DECAL

Case Logo, Front

1шт.

5

84350219

DECAL

Rear, Case Logo, Background

1шт.

6

84311902

DECAL

Customer Assistance, Case

1шт.

7

NSS

NOT SOLD SEPARAT

Rops Model And Approval

1шт.

8

84367792

DECAL

Oil Fill and Check

2шт.

9

87429186

EMBLEM

Case, Engine

1шт.

10

87415931

DECAL

Case, Engine

1шт.

11

87389374

DECAL

Case Logo, Rear Door, Order With Ref. 5

1шт.

11

84492067

DECAL

Case Impact Logo, Rear Door, Silver/Fading

1шт.

12

84383722

DECAL

Case Logo, Loader Arm

2шт.

12

84492069

DECAL,200mm H x 786mm L

Case Impact Logo, Loader Arm, Silver/Fading

2шт.

13

84315533

DECAL

Loader Support On Loader Arm (Not Shown)

1шт.

Выбрано товаров: 17
