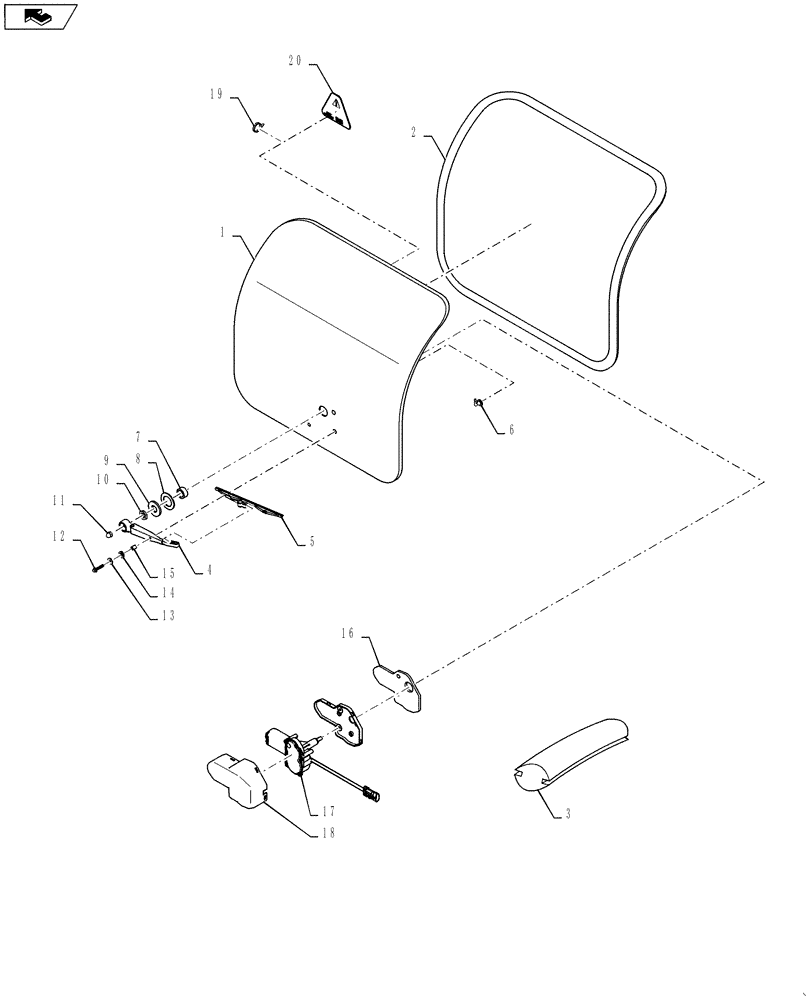

Запчасти Case TR320 (90.154.04) - REAR WINDOW EU (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84251333

TINTED GLASS

Rear Window EU

1шт.

2

84478939

GASKET,2427.29mm L

Locking

1шт.

3

92626

MOLDING,200FT L

Locking Strip 8 Ft.

1шт.

4

84323115

WIPER ARM,Single, 187.5mm L

1шт.

5

84323116

WIPER BLADE,254mm L

1шт.

6

84369351

ELBOW,90 Degree

Assy, Connector

1шт.

7

87642536

BUSHING,19.8mm ID x 28.6mm OD x 13mm L

Wiper Motor

1шт.

8

84297721

SEAL,31mm ID x 50mm OD x 2mm Thk

Washer

1шт.

9

84156178

WASHER,0.78" ID x 1.75" OD x 0.18" Thk

.781 x 1.75 x .179"

1шт.

10

87607505

NUT,M18, 5mm Thk

Wiper

1шт.

11

412326

CROWN NUT,Dome, M8 x 1.25mm, Cl 6

Dome Crown M8

1шт.

12

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

13

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

14

84321136

SEAL,10.5mm ID x 18.5mm OD x 3mm Thk

2шт.

15

87642540

SPACER,6.5mm ID x 9.5mm OD x 13mm L

Wiper Motor

2шт.

16

84319673

GASKET,6.35mm Thk

Rear

1шт.

17

84319569

WIPER MOTOR

1шт.

18

84300094

COVER

Cover

1шт.

19

263117

CABLE TIE,292.1mm L, Nylon, Black

1шт.

20

87026871

PLASTIC SIGN

Exit Tag

1шт.

21

87037822

SELF-TAP SCREW,Hex Flg Hd, M6 x 30

(Not Shown)

1шт.
