(90.150.04) - FLOOR MAT, EH CONTROLS (ALL CASE)

Запчасти Case TR320 (90.150.04) - FLOOR MAT, EH CONTROLS (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

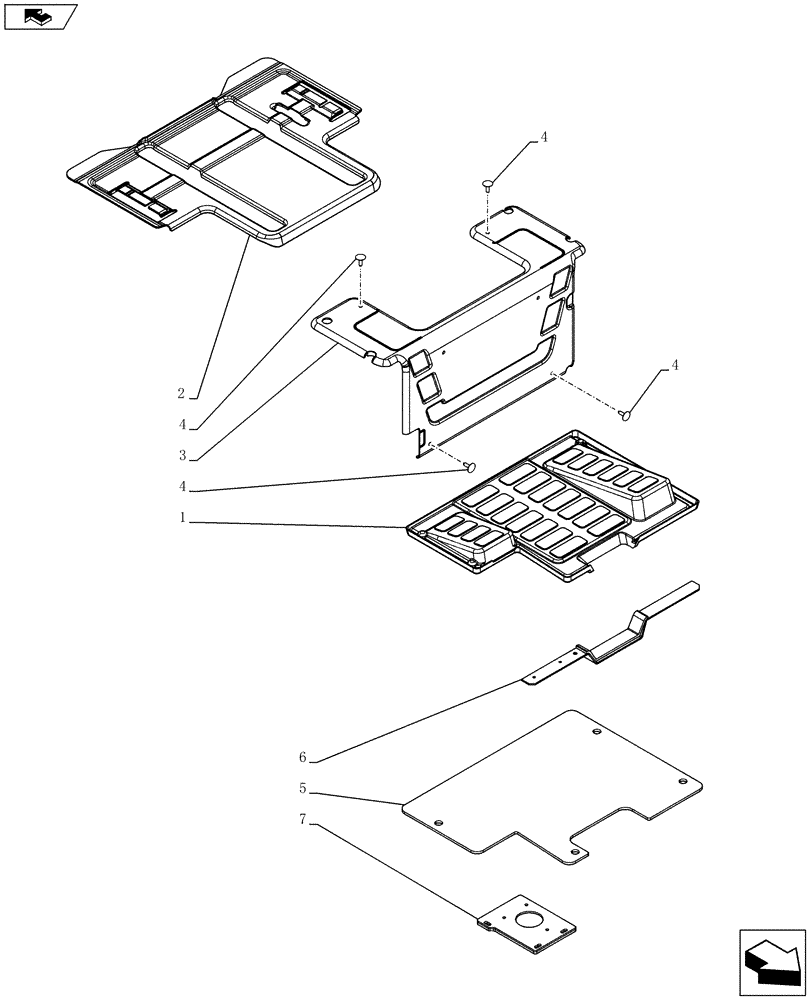

Схема запчастей Case TR320 - (90.150.04) - FLOOR MAT, EH CONTROLS (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
7
4
3
5
2
home
6
4
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84259690

FLOOR MAT

Trim

1шт.

2

84271712

FLOOR MAT

Seat Pan, EH

1шт.

3

84397556

MAT

Heel Plate, EH

1шт.

4

86620930

FASTENER,Push-In, 1.10" L, Nylon

Push-In

6шт.

5

84372627

FOAM

No Pedal Floor Plate

1шт.

6

84372707

FOAM

Front Door Plate

1шт.

7

84372630

FOAM

Foot Throttle

1шт.
