Запчасти Case TR320 (90.150.01[02]) - CAB (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

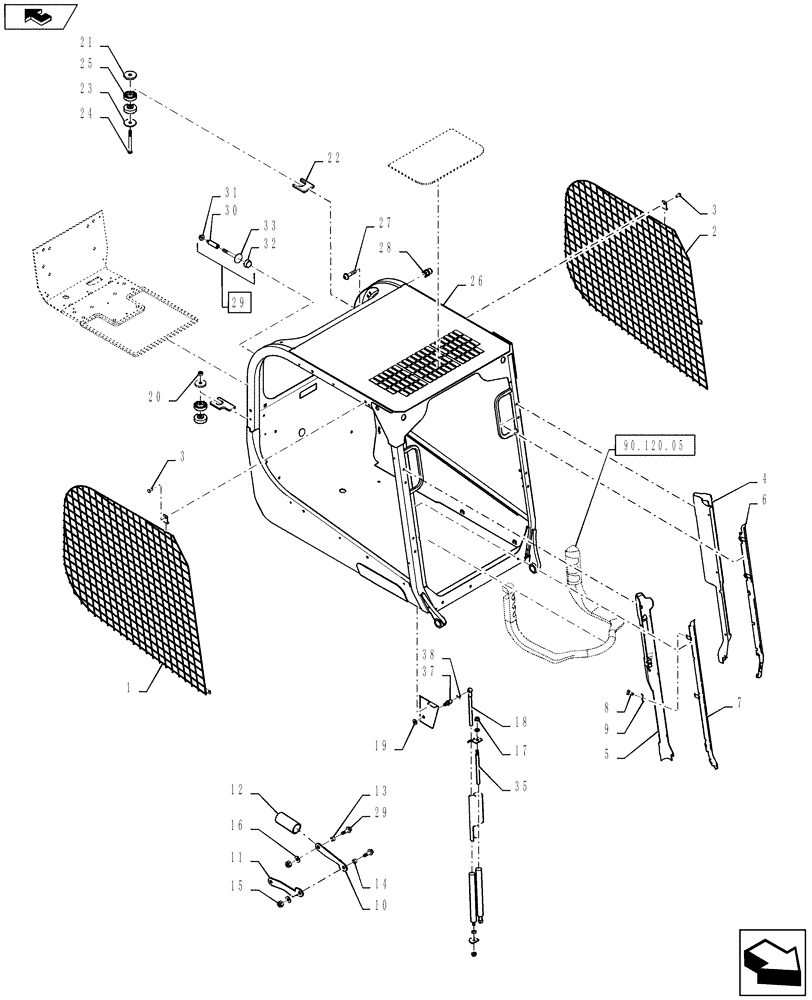

Схема запчастей Case TR320 - (90.150.01[02]) - CAB (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
23
4
home
29
24
15
7
31
28
25
1
33
22
8
21
18
29
90.120.05
19
20
11
30
3
12
13
6
38
9
3
26
16
10
37
14
17
35
5
27
32

Артикул

Название

Примечание

Количество

1

84200803

SCREEN

ROPS Side Screen RH

1шт.

2

84307405

SCREEN

ROPS Side Screen LH

1шт.

3

84310724

RIVET,Button, 6.4mm OD x 15.9mm L

22шт.

4

84379512

TRIM PANEL

LH Case, Wheat

1шт.

5

84302476

CONSOLE

RH Case, Wheat

1шт.

6

84473542

BRACKET

LH A-Post Console

1шт.

7

84473534

BRACKET

RH A-Post Console, Years: -21-MAR-13

1шт.

7

47428342

BRACKET

RH A-Post Console, Start Year: 22-MAR-13

1шт.

8

84349415

SCREW,Torx, Round HD, M6 x 12mm, Cl 10.9

12шт.

9

87594976

SPECIAL NUT

U Nut

6шт.

10

84349494

PLATE

Upper Locking Arm

1шт.

11

84349498

PLATE

Lower Locking Arm

1шт.

12

84309929

TUBE

Locking Collar Safety

1шт.

13

84349662

SPACER,10.80mm ID x 14.80mm OD x 8.35mm

2шт.

14

84349661

SPACER,10.8mm ID x 14.8mm OD x 16mm L

1шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

17

412141

NUT,M10 x 1.5, Cl 8

1шт.

18

84423628

GAS STRUT

1шт.

19

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

20

86512498

FLANGE NUT,M16 x 2, Cl 10

Secure Cab Down

2шт.

21

84298254

PLATE

Rear Mount

2шт.

22

84361070

PLATE

2шт.

23

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

2шт.

24

87698773

BOLT,Hex, M16 x 160mm, Cl 10.9, Full Thd

2шт.

25

84201266

ISOLATOR,16mm ID x 80mm OD x 41.5mm Thk

Engine Mount

4шт.

26

NSS

NOT SOLD SEPARAT

ROPS, CNH Gray

1шт.

27

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

Lap Bar Stop Mount

3шт.

28

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

29

NS

NOT SERVICED

Lap Bar Stop, Incl 30 - 33

1шт.

30

84355970

MOUNT

Round Lap Bar Stop

2шт.

31

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

32

87639914

STOP

Pivot Lap Bar Stop

2шт.

33

87639912

KNOB

2шт.

34

84469647

BRACKET

Cab Strut Bumper, Not Illustrated, Start Year: 01-NOV-13

1шт.

35

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

Use with Ref. 34, Not Illustrated, Start Year: 01-NOV-13

1шт.

36

254206A1

SPACER,38.35mm ID x 82.50mm OD x 8.70/9.50mm Thk

Black, Use with Ref. 34, Not Illustrated

4шт.

37

84372097

STUD

Ball

2шт.

38

84372099

CLIP

Locking

2шт.

39

84473525

CROWN NUT,Hex, #10 – 24 x 10.32mm High

Acorn, Console to Bracket

6шт.

Выбрано товаров: 40
