Запчасти Case TR320 (90.150.01[01]) - CAB (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

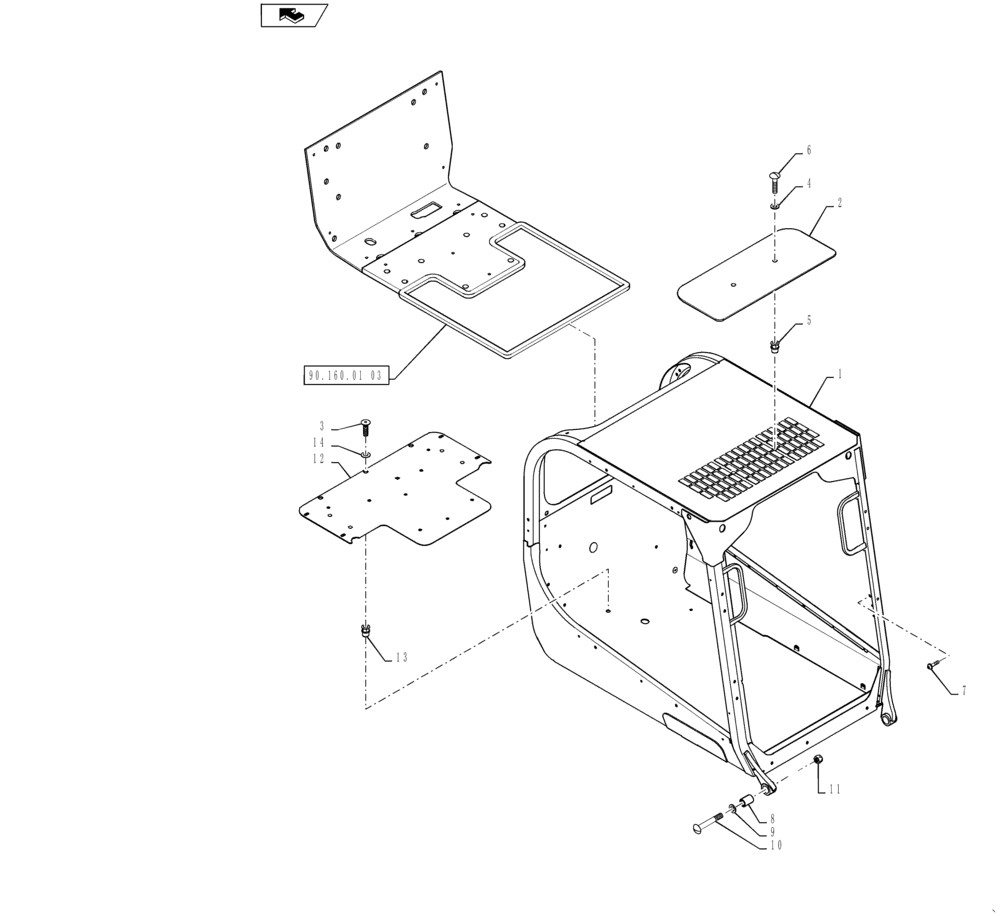

Схема запчастей Case TR320 - (90.150.01[01]) - CAB (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
9
5
14
11
8
7
6
90.160.01 03
home
1
10
12
13
2

Артикул

Название

Примечание

Количество

1

84498871

KIT

ROPS, CNH Gray

1шт.

2

84336571

WINDOW

Skylight, Top

1шт.

2

84371644

RUBBER SEAL

Skylight

1шт.

3

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

9шт.

4

394277A1

SEALING WASHER,7mm ID x 18.5mm OD x 3.5mm Thk

2шт.

5

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

7шт.

6

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

2шт.

7

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

8шт.

8

84200848

MOUNT

2шт.

9

84365968

SEALING WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

10

84370842

CARRIAGE BOLT,Sht Sq Nk, M20 x 100mm, Cl 10.9, Full Thd

2шт.

11

86536985

NUT,M20 x 2.5, Cl 10

2шт.

12

84284728

SEAT

Pan, Gray

1шт.

13

84310724

RIVET,Button, 6.4mm OD x 15.9mm L

Seat Pan

2шт.

14

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

15

84472461

COVER

Behind Seat Assembly, Gray

1шт.

Выбрано товаров: 16
