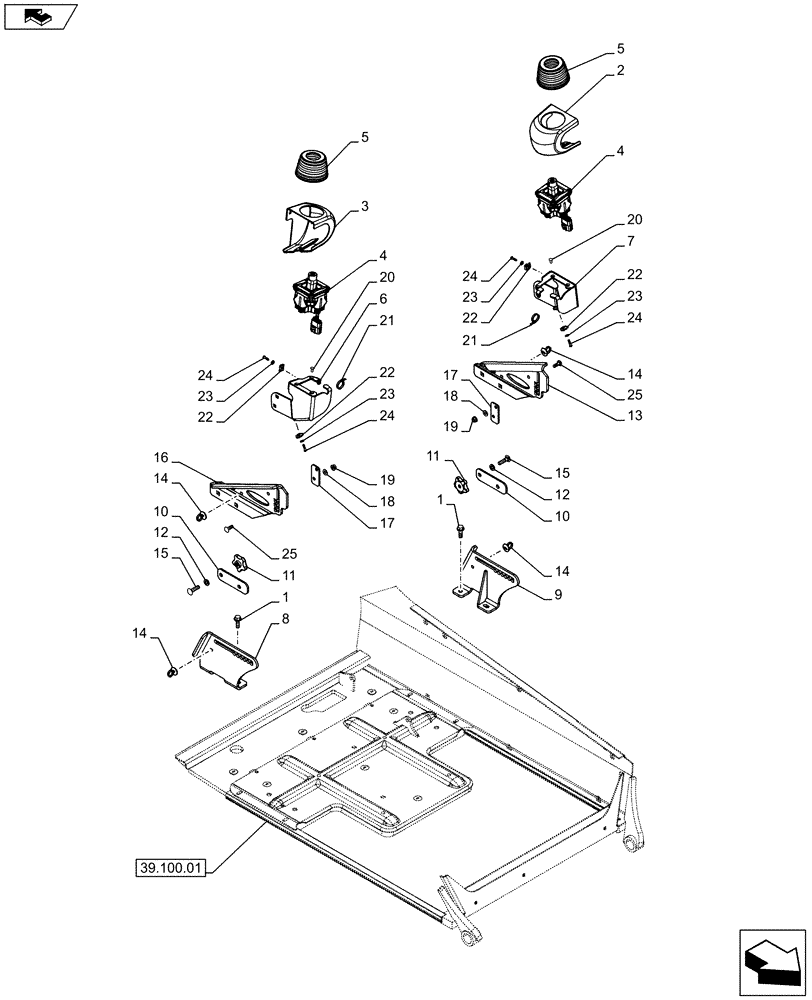

Запчасти Case TR320 (90.112.02[03]) - HANDLE, ELECTRONIC CONTROL CASE (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

2

84201490

COVER

LH EH Cover

1шт.

3

84201491

COVER

RH EH Cover

1шт.

4

84249066

JOYSTICK

Joystick, Two-Axis Ratiometric

2шт.

47416528R

REMAN-JOYSTICK

SR250, SV300, TR320, TV380 all TIER 4A (7/12-); Reman for New P/N 84249066

2шт.

47416528C

CORE-JOYSTICK

Return Number, Years: -04-AUG-13

1шт.

4

47548974

JOYSTICK

Joystick, Two-Axis Ratiometric, Start Year: 05-AUG-13

2шт.

4

47548974R

REMAN-JOYSTICK

SR250, SV300, Both SKID STEER LOADER, TR320, TV380, Both COMPACT TRACK LOADER, All TIER 4A, Joystick, Two-Axis Ratiometric (7/12-)

2шт.

4

47548974C

CORE-JOYSTICK

Return Number

2шт.

5

84412489

BOOT

EH Control

2шт.

6

84410986

BRACKET

RH EH Upper

1шт.

7

84410984

BRACKET

LH EH Upper

1шт.

8

84369519

BRACKET, SUPPORTING

RH EH Base

2шт.

9

84368998

BASE PLATE

LH EH Base

8шт.

10

84368561

PLATE

4шт.

11

87639912

KNOB

Star 3/8

4шт.

12

81547

LOCK WASHER,7/16"

4шт.

13

84410989

BRACKET

LH

1шт.

14

378884A2

STRAP,254mm L

Through Panel Tie

6шт.

15

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

4шт.

16

84410990

BRACKET

RH

1шт.

17

84410988

SPACER,32mm W x 70mm L x 3.68mm Thk

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

20

86511855

SCREW,Flat, M6 x 1.0 x 12mm OAL, Cl 4.8

6шт.

21

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

22

86625077

SPRING NUT,J, Ret, #10-24

4шт.

23

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

24

86511922

SCREW,Pan, #10 - 24 x 3/4"

4шт.

25

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.
