Запчасти Case TR320 (90.112.01[04]) - HAND CONTROLS, HANDLE LH (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

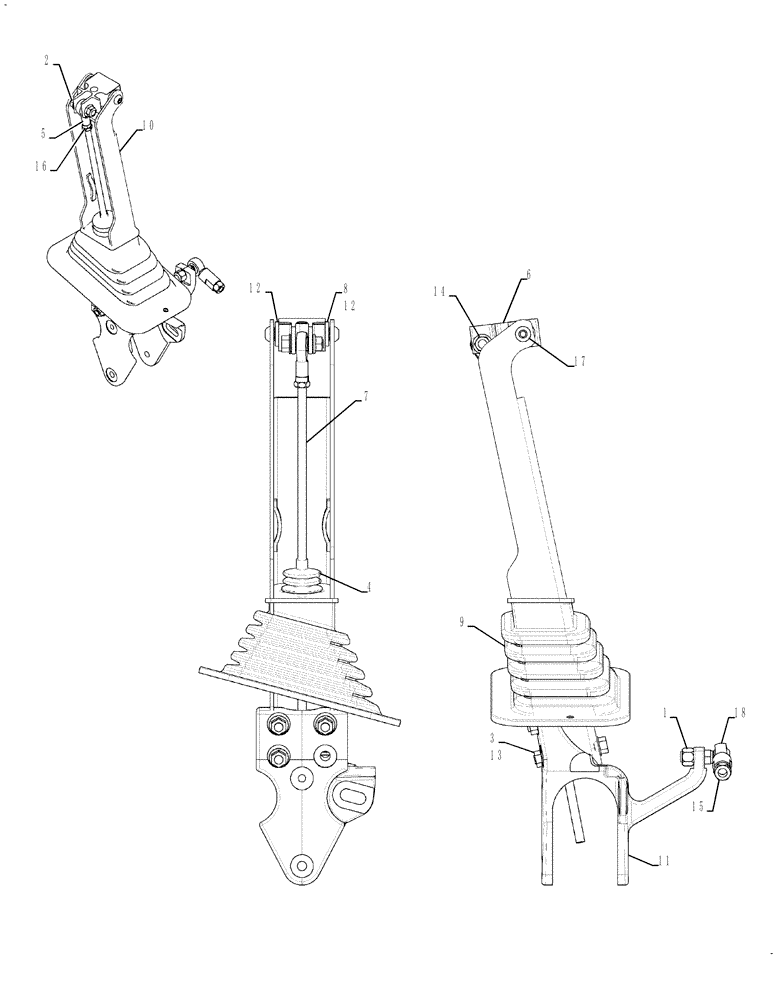

Схема запчастей Case TR320 - (90.112.01[04]) - HAND CONTROLS, HANDLE LH (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
7
1
3
15
17
5
13
9
2
12
11
8
10
4
16
12
18
6

Артикул

Название

Примечание

Количество

1

80855

NUT,Hex, 3/8" - 24

1шт.

2

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

4

84201371

BOOT

Control Rod Boot

1шт.

5

84263144

BALL JOINT,5/16" - 24

Rod End

1шт.

6

84291862

KNUCKLE JOINT

Hand Control

1шт.

7

84300731

THREADED ROD,7.94mm OD x 456mm L

Hand Control LDH

1шт.

8

84302564

ROD,12.6mm OD x 50mm L

Grip Pivol

1шт.

9

84339566

BOOT

Control Handle SQ LH

1шт.

10

84348730

HANDLE

Channel

1шт.

10

47535435

HANDLE

Channel, LH, Start Year: 01-AUG-12

1шт.

11

84351110

MOUNT

Handle Pivot LH

1шт.

12

86013179

FLANGED BEARING,0.502" ID x 0.875" OD x 0.75" W

Flange Bearing

2шт.

13

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

3шт.

14

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

15

87030547

NUT,3/8" - 24, LH Thd, Gr 5

1шт.

16

87034513

JAM NUT,5/16" - 24, LH Thd, 0.195" High, Gr 5

1шт.

17

87360874

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 8.8

Hex Soc Btn Hd M8x16

2шт.

18

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

Socket Threaded Stuc w/ Rod End

1шт.

Выбрано товаров: 19
