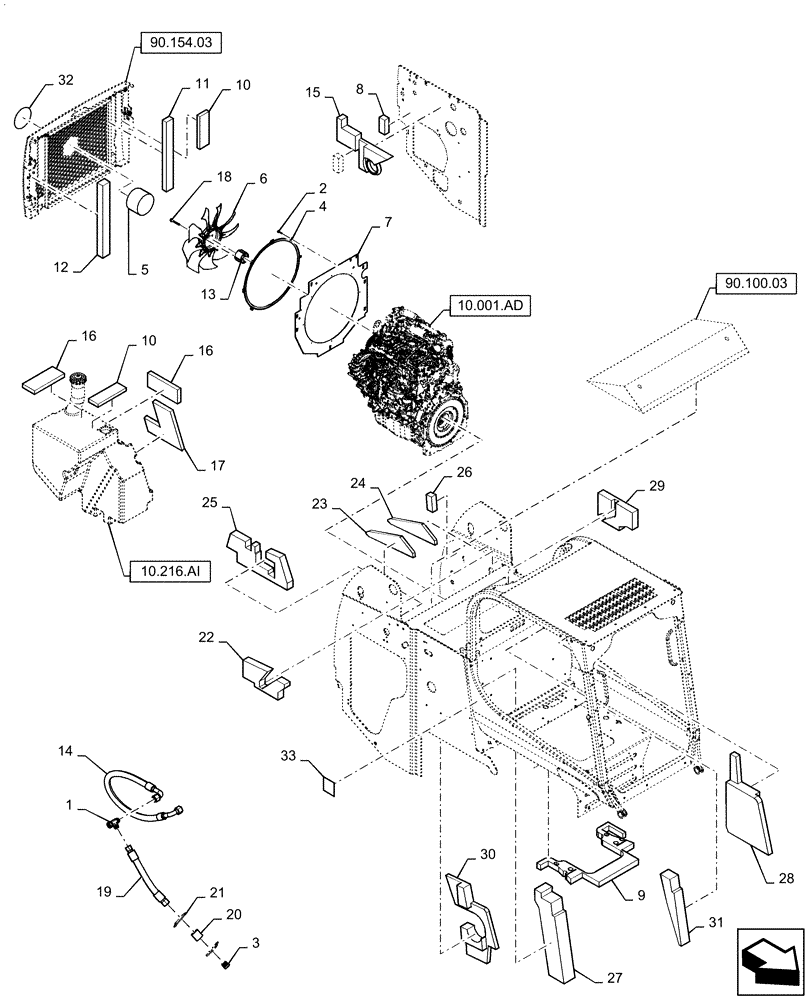

Запчасти Case TR320 (90.105.CU) - ENGINE SOUND ACCOUSTICS CAB EURO (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
265978
TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC
1шт.
2
281050
SELF-TAP SCREW,#10-24 x 15.44mm OAL
8шт.
2
87308841
RIVET,Pop, 3.97mm OD x 10.79mm L
, Start Year: 28-APR-14
8шт.
3
9790527
PLUG,1-5/16" - 12 JIC
1шт.
4
47383489
CIRCULAR BRUSH,566mm ID x 595mm OD x 3mm Thk
1шт.
5
47391841
FOAM INSULATION
Rear Door
1шт.
6
47488901
FAN,9 Blades, 560mm OD
Clockwise Pusher
1шт.
7
47519892
PLATE
Shroud Fan Front
1шт.
8
84366329
FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick
Chassis, LH
2шт.
9
84366352
FOAM INSULATION
Heal Plate Vertical
1шт.
10
84372973
FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk
Fan, LH
1шт.
11
84372981
FOAM INSULATION
Fan
1шт.
12
84372988
FOAM INSULATION,584.4mm L x 67.5mm W x 50.8mm Thk
Fan, RH
1шт.
13
84373345
SPACER
1шт.
14
84383953
HOSE ASSY.
Valve Supply
1шт.
15
84481916
FOAM INSULATION
LH Tower Rear
1шт.
16
84481987
FOAM INSULATION,280mm L x 111.9mm W x 30mm Thk
Fuel Tank
1шт.
17
84482003
FOAM INSULATION
Fuel Tank
1шт.
19
87351645
HOSE ASSY.,417mm L
Resonator
1шт.
20
87595771
ISOLATOR,200mm L x 50mm W x 3.2mm Thk
1шт.
21
L18331
CABLE TIE,375.9mm L, Nylon, Black
2шт.
22
47391852
FOAM INSULATION
Tower, LH
1шт.
23
47415715
FOAM INSULATION
Tilt Hood
1шт.
24
47415716
FOAM INSULATION
Tilt Hood
1шт.
25
47545246
FOAM INSULATION
Tower, RH
1шт.
26
84366329
FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick
Chassis LH
1шт.
27
84366336
FOAM INSULATION
RH Tower Front
1шт.
28
84366339
FOAM INSULATION
LH Tower Mid
1шт.
29
84366341
FOAM INSULATION
LH Tower Rear
1шт.
30
84552074
FOAM INSULATION
RH Tower Rear
1шт.
31
84552075
FOAM INSULATION
LH Tower Front
1шт.
32
47638946
COVER
Lexan, Rear Door
1шт.
33
435308A1
DECAL
Sound Level, SR250
1шт.
33
86836504
DECAL
Sound Level, TR320
1шт.
Выбрано товаров: 35
